VXB

S7200C Stainless Steel Angular contact Bearing 10x30x9

$129.99
SKU: S7200-ANGULAR-CONTACT
UPC: 00193019322574
Item: 7200C
Type: Angular Ball Bearing
Material: Stainless Steel
Quantity: One Bearing
Dimensions: 10mm x 30mm x 9mm/Metric
S7200C Stainless Steel Angular Ball Bearing
15 degrees Contact Angle
10mm x 30mm x 9mm


S7200C Stainless Steel Angular contact, inner diameter is 10mm, outer diameter is 30mm and width is 9mm.

  • Item: 7200C Ball Bearing
  • Type: Angular Ball Bearing
  • Dimensions: 10mm x 30mm x 9mm/Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 30mm
  • Width/Height/thickness: 9mm
  • Size: 10 x 30 x 9 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 6,950 N
  • Static load rating Cor: 3,300 N
  • Limiting Speed:
    • Grease Lubrication: 40,000 RPM
    • Oil Lubrication: 55,000 RPM

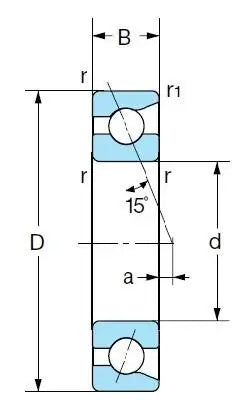

Dimensions
d D B r r1 a
10mm 30mm 9mm 0.6mm 0.3mm -2.2mm
