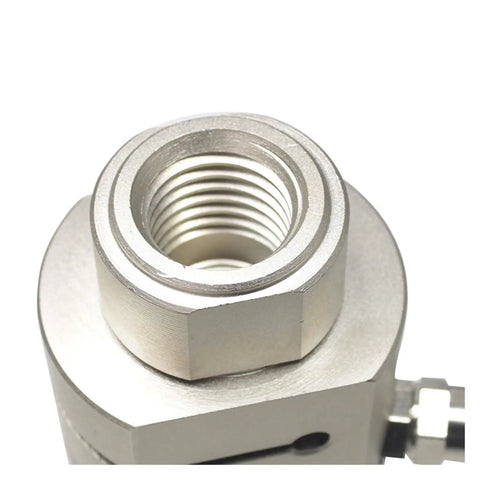

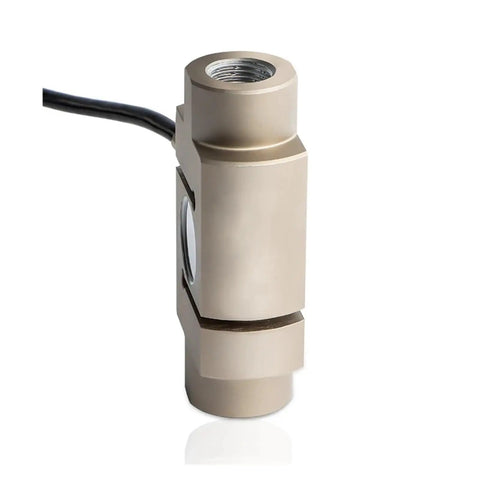

S Type Load Cell 200 Kg Tension And Compression Sensor Built Tough Weighing Transducer High Capacity For Belt Scales And Hopper Scales And Engineering Force Measurements

Single 0-20T S-Type Load Cell for tension & compression
✔️ 0-20T capacity, 5-15V power, 2.0mV/V output, alloy steel

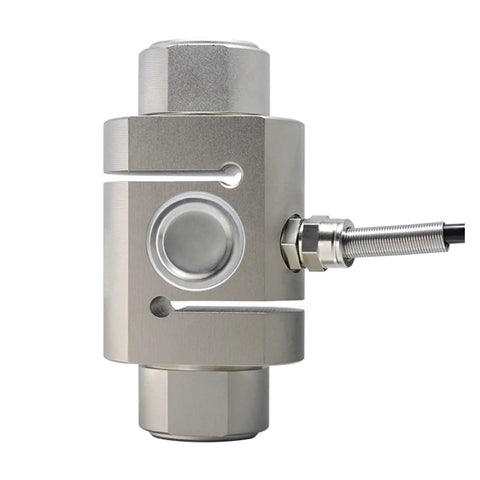

The S-type load cell is a rugged tension and compression sensor built from alloy steel, designed for use in belt scales, hopper scales, and other engineering force measurement systems. Its S-beam geometry provides stable readings and straightforward installation in challenging industrial environments.

✅ Capacity: 0-20T
✅ Response frequency: 10kHz
✅ Rated Output: 2.0mV/V
✅ Material: Alloy steel
✅ Non-Linearity: 0.05%F.S.
✅ Impedance: 350
✅ Hysteresis: 0.05%F.S.
✅ Working voltage: 5-15V
✅ Repeatability: 0.03%F.S.
✅ Safe Overload: 150%
✅ Creep(30min): 0.05%F.S/30min
✅ Maximum Overload: 200%
✅ Zero Balance: ±1%F.S.
✅ Temp Effect on Zero: 0.05%F.S./10
✅ Operating Temp Range: -20-80
✅ Color: 200kg

💡 What is a load cell used for in industrial measurement systems?

This handy sensor converts force into an electrical signal for precise weighing and force testing across industrial processes.

- Used in belt scales and hopper scales to ensure accurate material weighing
- Suitable for tension and compression force measurement in engineering tests
- Works with standard signal conditioners and data loggers for easy integration
✝️
