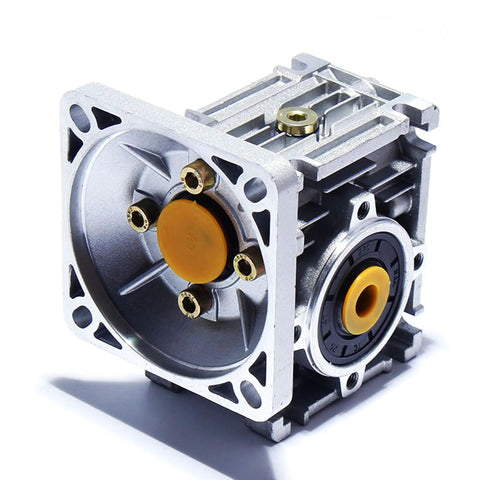

RV030 Worm Gearbox Square Type Reducer 30 to 1 For NEMA23 Stepper Or Servo Motors, 11mm Input Shaft, 14mm Output Shaft, Aluminum Alloy Housing, QT400 Ductile Iron Worm Gear, Beefy Torque For Real Performance

RV030 30:1 Worm Gearbox for NEMA23 Motors 11/14 Shafts
✔️ Input 11 mm, output 14 mm, aluminum housing, IP55

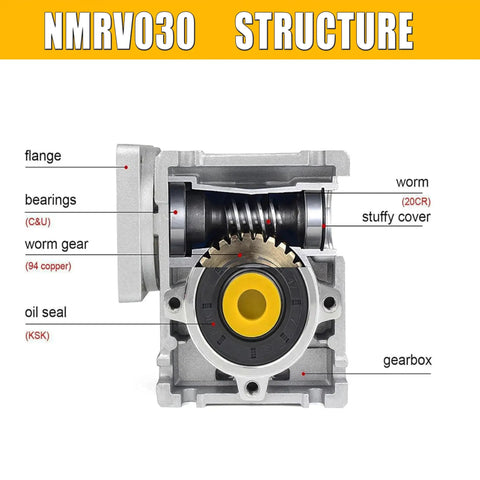

The RV030 is a square-type worm gearbox reducer designed for direct mounting to NEMA23 servo or stepper motors. It uses QT400 ductile iron worm gear with an ADC12 aluminum housing to deliver strong torque in a compact package. Pack: 1 unit.

✅ 30:1 gear ratio delivers high torque at low speeds
✅ NEMA23 (60x60) input flange compatibility

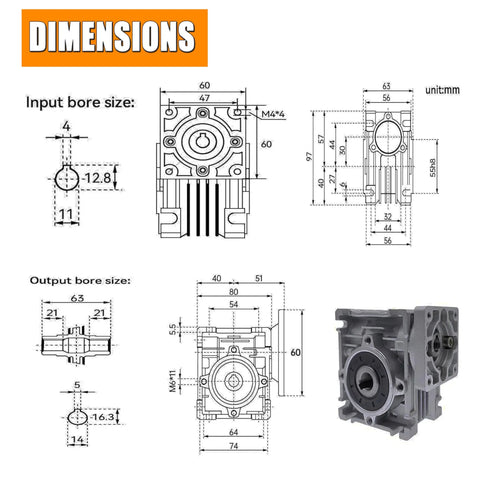

✅ 11 mm input shaft and 14 mm output shaft diameters

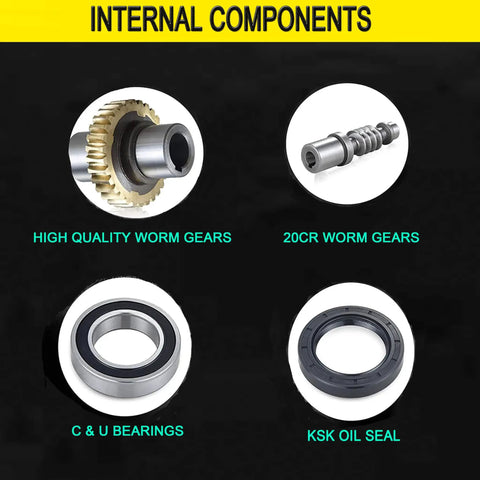

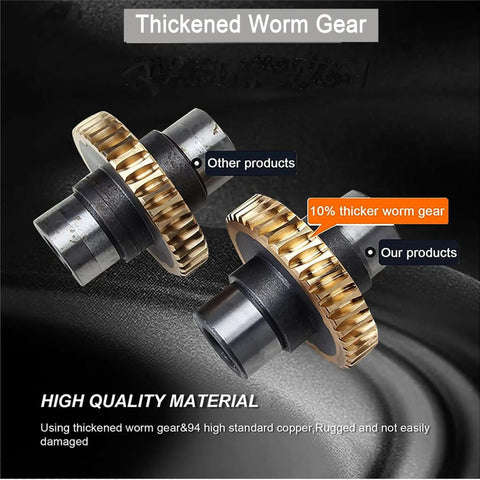

✅ QT400 ductile iron worm gear for durability
✅ ADC12 aluminum die-cast housing for light weight and corrosion resistance
✅ IP55 protection against dust and moisture

💡 What is a worm gearbox reducer used for in motion control projects?

It's a handy choice when you need high torque in a compact form and smooth, low-speed control.

• High torque multiplication in a compact footprint
• Stable, low-noise operation for long runs
• Compatible with common servo and stepper motors
• Rugged IP55-rated housing for harsh environments
