RV Air Conditioner Fan Motor Replacement With Capacitor One Third Horsepower 115V Dual Speed 1675 And 1080 RPM Replaces D1092 For Your RV Rig Coleman Mach 1468-306 1468-3069 7184-0156 7184-0432 7855MVA A11U
✔️ 1/3 HP dual-speed condenser fan motor, 115V, 4.5A, CWLE
Replace a worn RV condenser fan motor with a compatible unit designed for Coleman Mach roof ACs, delivering reliable cooling on the road.

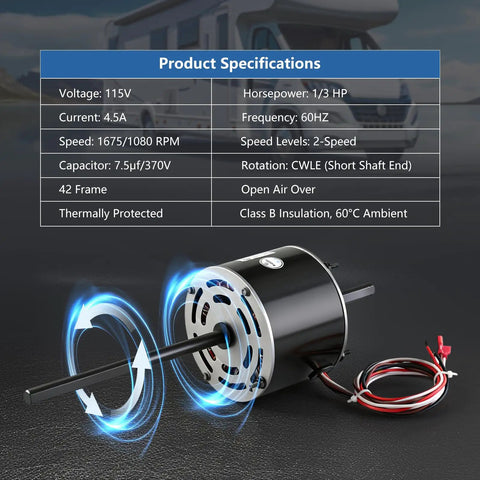

✅ 1/3 HP at 115V, 60 Hz, 4.5A, dual-speed 1675/1080 RPM

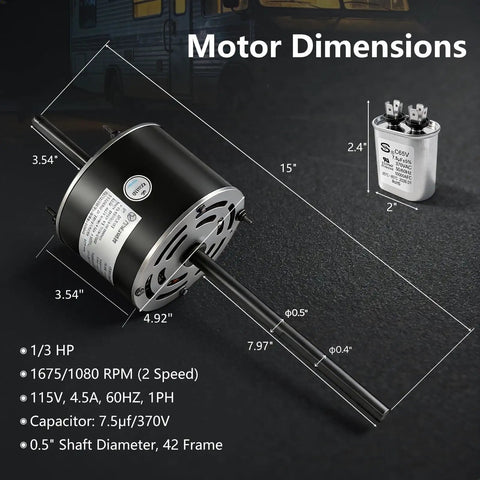

✅ CWLE rotation, 42 frame, 4.92 in diameter (125 mm) body
✅ Double shaft with dimensions 7-15/16 in x 1/2 in x 3-1/2 in (202 x 12.7 x 89 mm)
✅ Includes 7.5 μF/370V capacitor, Class B insulation, 140°F ambient rating

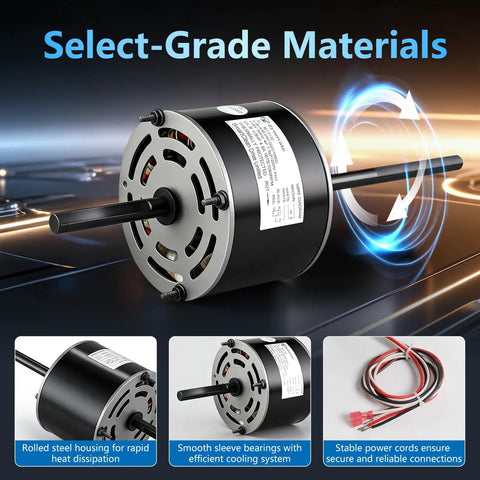

✅ Built-in thermal overload protection and sleeve bearings for quiet RV operation
✅ Direct replacement for D1092 and listed Coleman Mach models (1468A3069, 7184-0156, 7184-0432, 7855MVA A11U)
✅ 5-year warranty and dedicated after-sales support
💡 What is an RV condenser fan motor used for in an RV air conditioning system?
It powers the outdoor fan that moves air across the condenser coils to reject heat and keep the cooling cycle efficient.
- Handy replacement for Coleman Mach and other RV AC units
- 115V operation with dual speeds (1675/1080 RPM) for proper cooling
- Includes capacitor and thermal overload protection for reliable service
