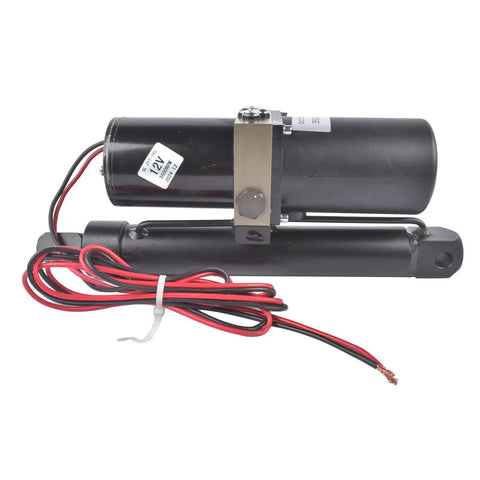

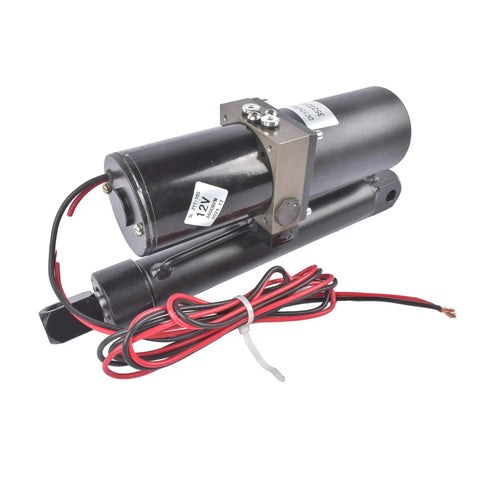

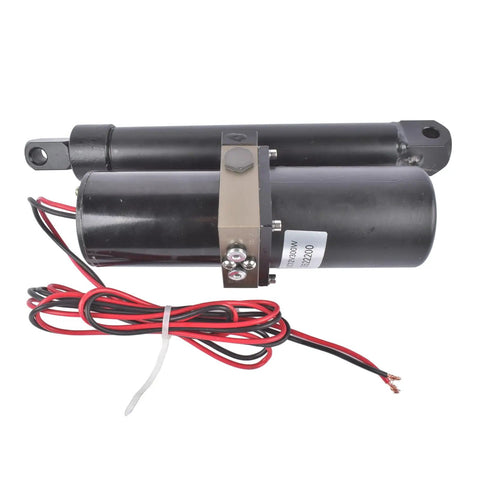

Rugged Workhorse 12V DC Hydraulic Linear Actuator 8 Inch Stroke 1700 Lbs Thrust Heavy Duty 300W Motor No Sweat Push Pull Cylinder For Farm And Auto Projects

Heavy Load 12V DC Hydraulic Linear Actuator For Tough Jobs
✔️ 200mm (8-inch) stroke, 1700 lbs thrust, 300W motor, 12V pull

This 12 volt hydraulic linear actuator drives heavy gates, tilting platforms, and workshop lifts with steady force. Mechanics run it on farm tractors, boat trailers, and custom car projects because it replaces slow electric screws with reliable fluid power.

✅ 200mm (8-inch) precise stroke range matches most lift needs
✅ 8000N (1700 lbs) max thrust handles heavy gate and platform loads
✅ 13mm/s (0.51 inch/s) extension speed with 10MPa pump pressure ensures smooth travel
✅ 22mm (0.87-inch) rod diameter and 35mm (1.38-inch) bore size fit standard mounting brackets

💡 Where do sealed ball bearings and ceramic coated pistons improve linear actuator reliability?

A solid hydraulic system blocks contaminants out while maintaining steady pressure across the stroke length.

- Bronze guide bushings take lateral loads so the push rod never binds inside the cylinder tube.

- High grade polyurethane shaft seals keep fluid locked in place for year round operation without dripping.

- Direct 12V wiring connects straight to marine or agricultural batteries making upgrades totally handy.

✝️
