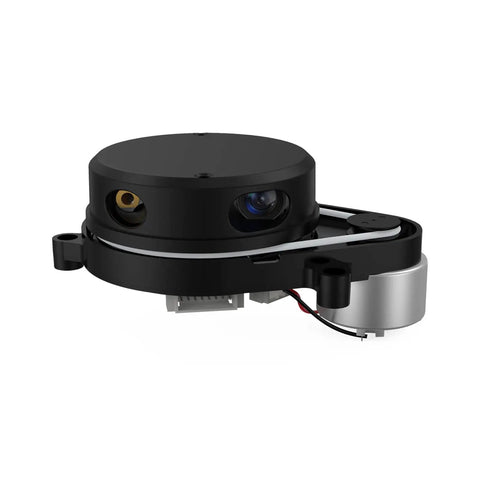

RPLIDAR X4 Pro 2D Lidar Sensor For 360 Degree Scanning And Robot Navigation, 12Hz Scan Rate, 0.12 To 10m Range, Pro Grade Precision Obstacle Avoidance Module For Autonomous Robots And Mobile Bots

2D Lidar Module X4 Pro for 360° Scanning and Navigation

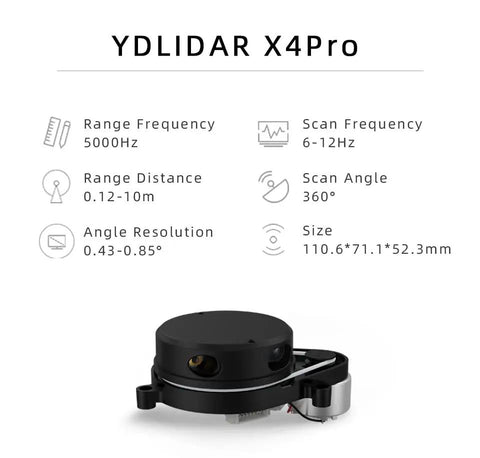

✔️ 360° scan, 0.12-10 m range, 0.43-0.86° angular res

This compact 2D lidar module provides 360° environment scanning for autonomous robots, enabling precise navigation and obstacle avoidance in indoor or cluttered spaces. Size: 110.6 mm x 71.5 mm x 59.4 mm (4.35" x 2.81" x 2.34"). Pack: 1.

✅ 360° omnidirectional scanning
✅ Range: 0.12-10 m
✅ Angular resolution: 0.43-0.86°
✅ Ranging frequency: 5,000 Hz
✅ Scan rate: 6-12 Hz
✅ Safety: FDA Class I
✅ Power: 4.8-5.2 V; startup 800-1000 mA; running 330-380 mA
✅ Weight: 178 g
✅ Operating temp: 20-40 °C

💡 What is a 360-degree Lidar module used for in autonomous robotics?

It helps robots sense surroundings and plan safe paths in real time.

• handy for obstacle avoidance, mapping, and ROS navigation
• great for indoor robots, security tasks, and environment scanning
• offers 0.12-10 m range and 0.43-0.86° angular resolution
• low power, FDA Class I safety, and robust operation
