Rotational 4th Axis Rotary Table With K11 100mm 3 Jaw Chuck Dividing Head Gapless Harmonic Gearbox Reducer 50 To 1 65mm Tailstock Ideal For CNC Router Engraving And Milling Machines

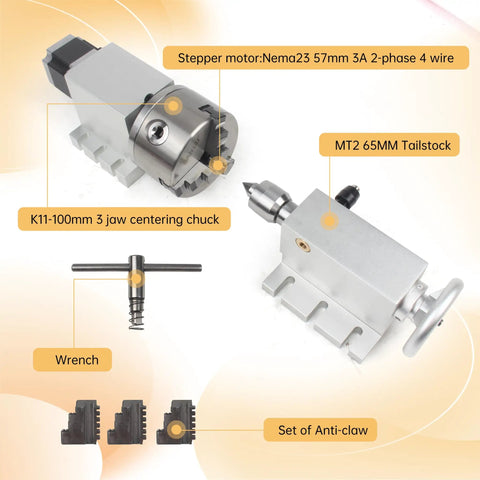

✔️ 100mm K11-100 3-jaw chuck, MT2 tailstock, 50:1 gearbox

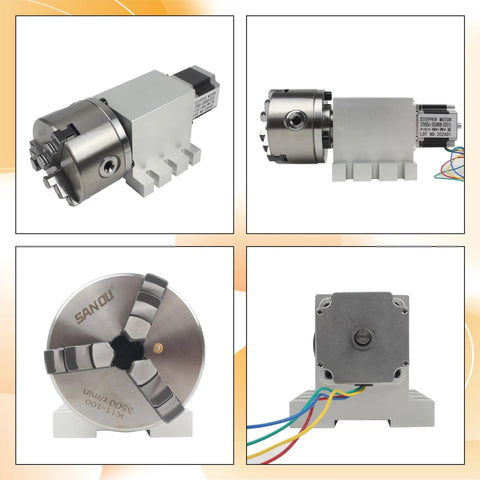

This compact 4th axis rotary table pairs a 50:1 gapless harmonic gearbox with a 100 mm K11-100 3-jaw chuck and MT2 tailstock. It's built for CNC routers, engraving, and milling machines, delivering precise rotation for multi-axis work and improved part repeatability.

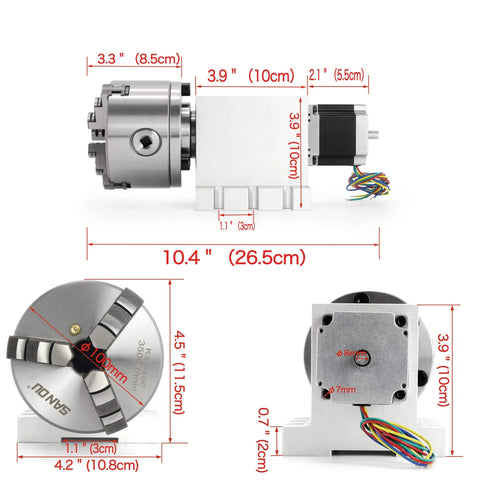

✅ Center height: 65 mm (2.56")
✅ Total height: 105 mm (4.13")
✅ Base: aluminum alloy with anti-rust coating
✅ Weight: 6.8 kg (14.98 lb)
✅ Gearbox: 50:1 harmonic reducer (model 17-50)

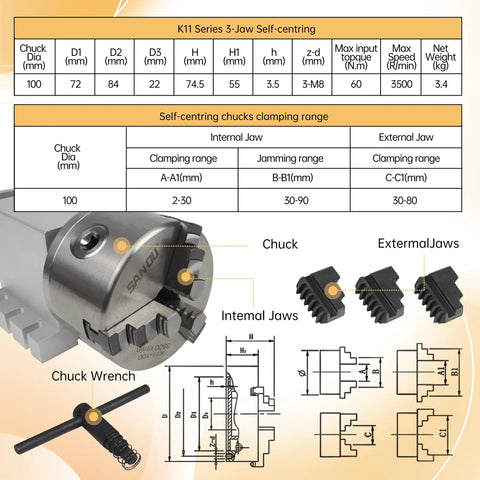

✅ Chuck: K11-100, 100 mm diameter, 3-jaw self-centering
✅ External jaw range: 30-80 mm (1.18-3.15")
✅ Internal jaw range: 2-30 mm (0.08-1.18")

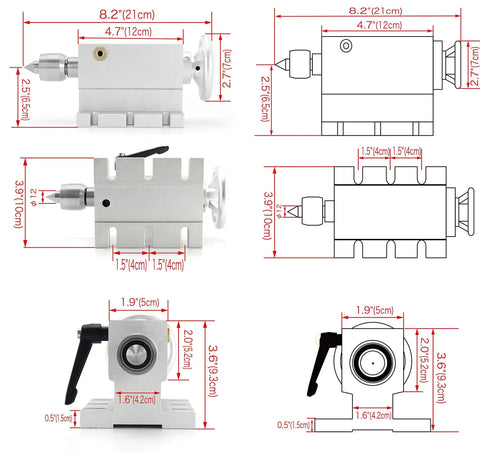

✅ Tailstock: MT2 live center, movable, expansion 45 mm (1.77"), travel 50 mm (1.97")

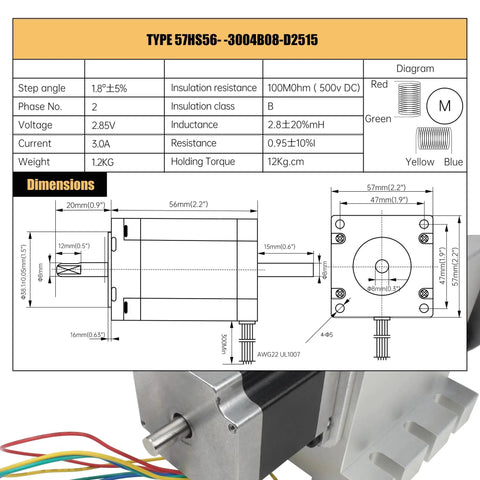

✅ Stepper motor: Nema23, 2-phase, 57x57x56 mm, holding torque 12 kg cm, 3 A
💡 What is a 4th axis rotary table used for in machining? This handy tool adds precise rotational capability to enable multi-axis work. - Expands cutting on circular or multi-face parts - Improves accuracy with a gapless harmonic gearbox - Synchronizes tool paths for engraving and milling - Reduces setup time and boosts repeatability
