Rock Solid Precision 3 Axis Manual Linear Stage With 40 Millimeter Roller Guide Platform For Fine Tuning And Trimming Features Hella Smooth Glide And Dead Nuts Accurate Micrometer Controls In Matte Black Finish

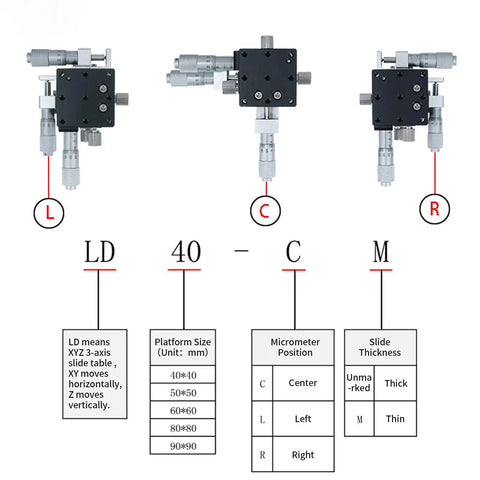

Single unit manual linear stage with micrometer controls
✔️ 40mm roller bearing track stage for exact component alignment

This single unit positioning rig provides hands on motion control for optical benches, inspection tables, and prototype chassis builds. Users mount cameras, sensors, or cutting heads to the moving platform and achieve clean shifts without electrical noise. The design keeps tolerances tight while letting technicians dial in perfect placement for every assembly step.

✅ Powder coated aluminum frame blocks corrosion during wet workshop conditions

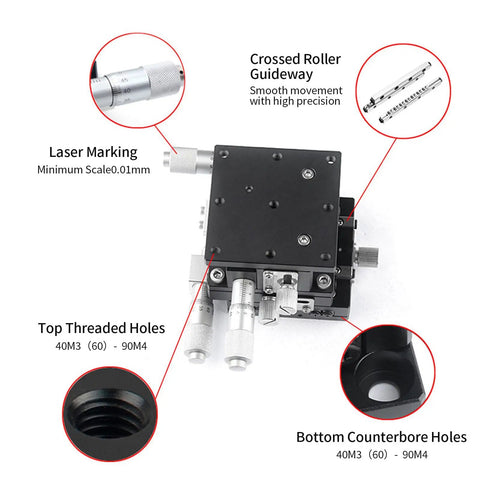

✅ Cross roller carriages slide smoothly with zero play under cyclic loading
✅ Thimble readouts track fractional millimeters for repeatable cut depths
✅ Independent X Y Z axes rotate freely to suit custom bracket layouts

💡 How does manual slide architecture maintain positional fidelity compared to automated systems?
Direct mechanical coupling eliminates encoder drift so builders get dead accurate results every run.
- Rigid dovetail tracks resist thermal expansion when machines run hot
- Lead screws convert hand torque into uniform carriage travel distance
- Simple lubrication schedules keep friction low across thousands of cycles
- Field techs find these rail assemblies handy for quick sensor alignment
