Rock Solid Nema 17 Stepper Motor With T8X8 Lead Screw Linear Actuator For Z Axis Cnc Upgrades Hella Durable Heavy Duty 42X40Mm 1.5Amp Bipolar 1.8Degree Step Angle Built Tough For Smooth Precision Tracking Daily

Integrated t8x8 n17 motor for precise z axis upgrades

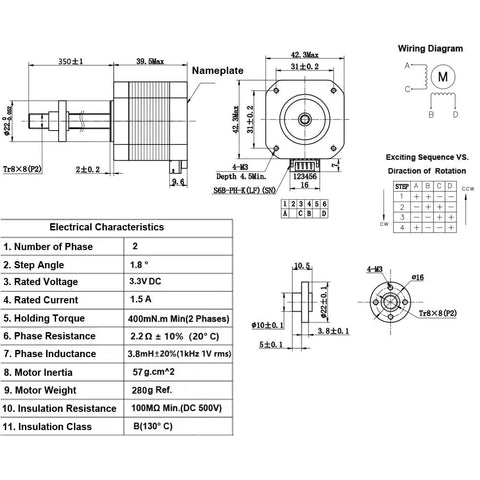

✔️ 42x40mm 1.5A 1.8 Ohm 400mNm 100mm T8x8 10mm shaft Nut

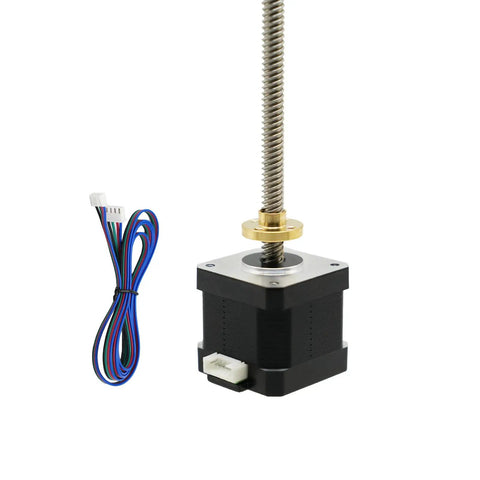

This upgraded Z-axis solution pairs a powerful NEMA 17 motor directly to a T8x8 lead screw, streamlining motion control for 3D printers and CNC routers. Designed for RepRap and Prusa i3 clones, it replaces flimsy belts with a rigid mechanical link that eliminates backlash. The package delivers a complete replacement, including a brass nut and wiring harness for rapid swap-outs. It brings reliable vertical travel to aging machines while supporting heavier frame structures.

✅ 42x40mm NEMA 17 frame dimensions and 100mm T8x8 threaded rod travel ✅ Bipolar winding with 1.5A per phase resistance of 1.8 Ohms ✅ Smooth rotation achieved via sealed bearings and Class B insulation rating ✅ Low rotor inertia of 57g.cm2 for sharp directional response changes ✅ Direct connection brass nut and 1-meter connector wired harness included ✅ Alloy steel internal screw shaft with copper windings for heat dissipation

💡 What are the main advantages of upgrading a 3D printer to a T8x8 lead screw Z-axis?

Installing this handy modification boosts overall machine performance by securing the print axis.

• T8x8 threaded shafts deliver superior holding torque to maintain precise bed leveling
• Rigid stainless steel rods minimize resonance artifacts during high-speed printing cycles
• Integrated motor designs reduce wiring clutter inside compact printer enclosures efficiently

✝️
