RF Detector Module AD8362 50Hz-3.8GHz Wideband RF Power Monitor From -52 dBm To +8 dBm Green PCB Mount With Screw Connector 5.656V DC Input Ideal for IS95 CDMA2000 GSM 3GPP Broadband Gear

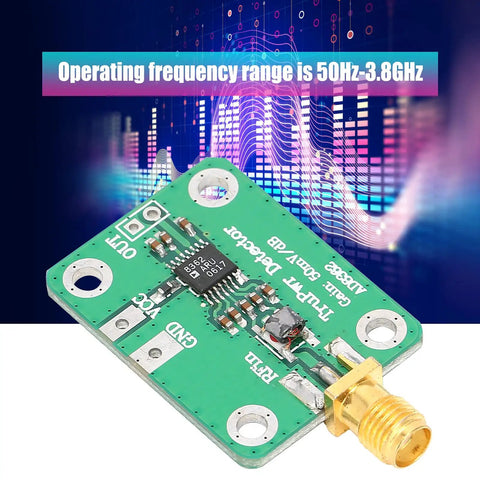

Wideband RF Detector Module AD8362 50Hz-3.8GHz DC Output
✔️ Logarithmic RF detector, -52 to +8 dBm, 50Hz-3.8GHz, 5.656V input

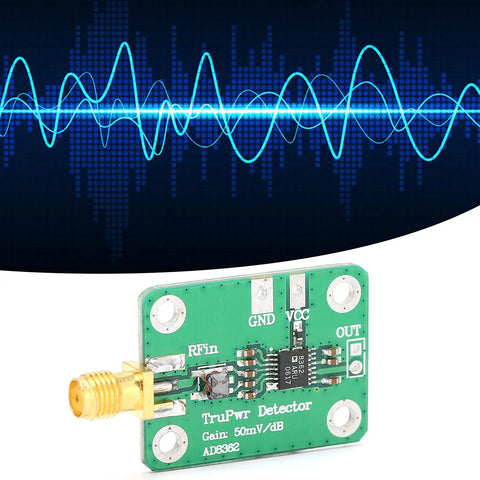

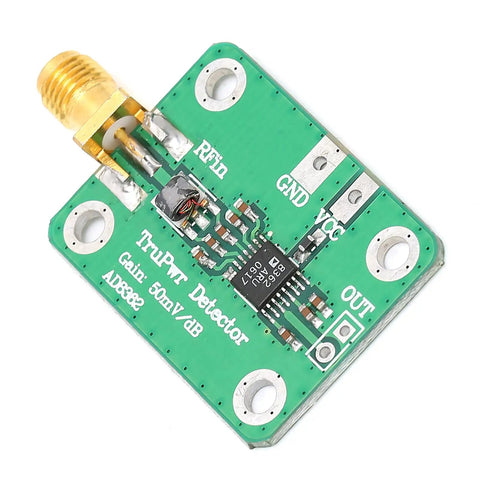

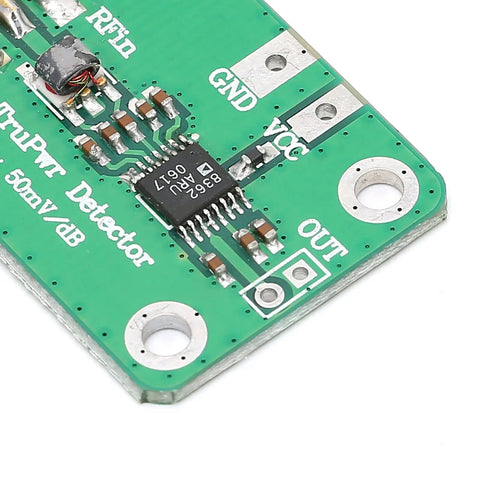

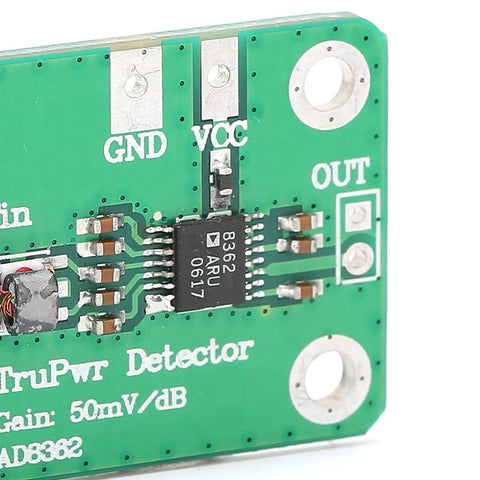

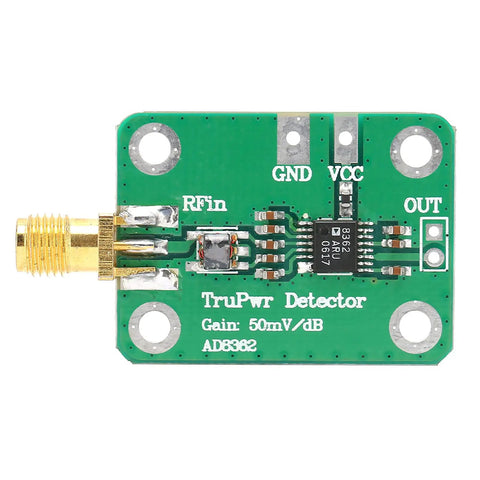

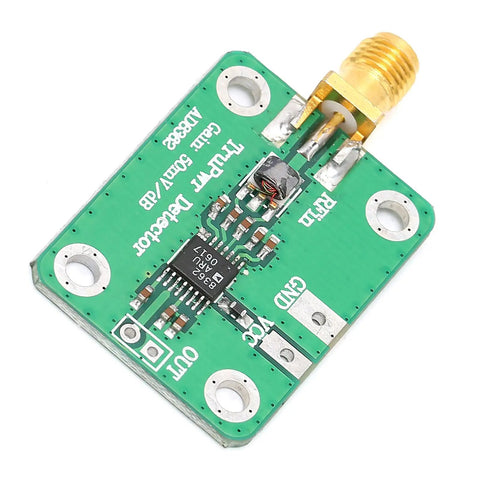

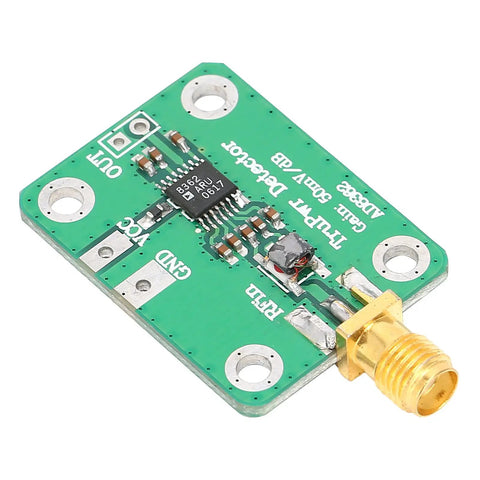

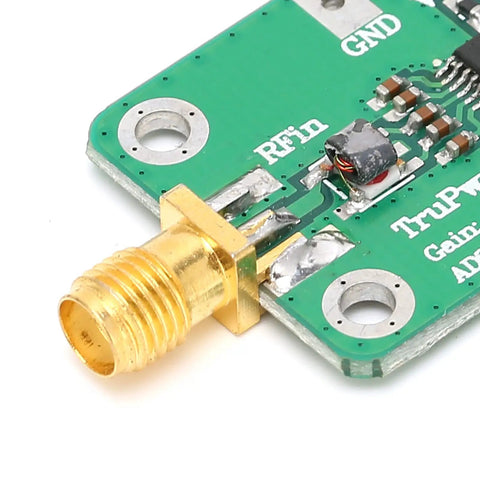

This detector module uses the AD8362 logarithmic detector to convert RF power into a DC voltage. It is compact, green PCB mount with a screw connector, designed for broadband telecom gear and test benches. Pack size: 1 x Detector Module.

✅ Operating frequency: 50 Hz - 3.8 GHz
✅ Input dynamic range: -52 dBm to +8 dBm (60 dB)
✅ Output: VOUT and VSET; logarithmic relation to input power
✅ Mounting: Green PCB with screw connector; 5.656 V DC input

💡 What is an RF detector module used for in broadband RF systems?

A handy tool for monitoring RF power and feeding control loops.

• Wideband detection from 50 Hz to 3.8 GHz
• DC output proportional to input power for easy interfacing
• Used for automatic gain and level control in telecom gear
• Compact design with screw terminal for simple mounting
