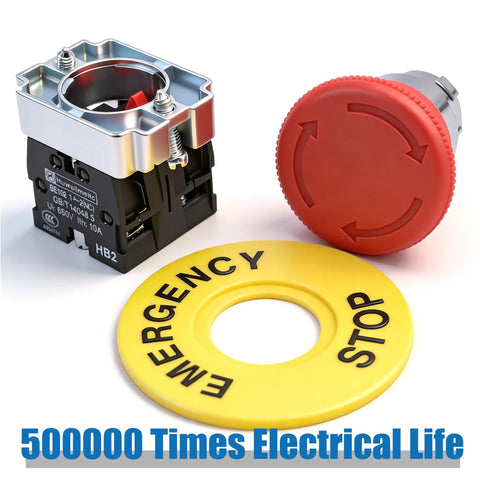

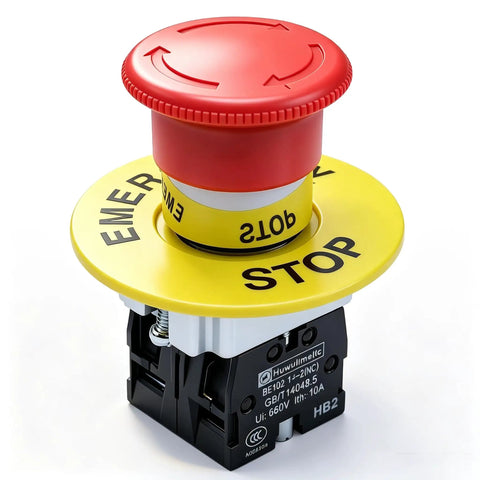

Red Mushroom Emergency Stop Push Button Switch 1NC 1NO Latching 22mm Mounting Hole 40mm Button Dia 6mm Panel Thickness Adjustable For Industrial Grade Equipment Control Panels 600V 10A

Red Mushroom Emergency Stop Push Button 22mm Mount 40mm Cap
✔️ 1NC 1NO, latching, 22mm mounting, 40mm button dia, 600V 10A

This emergency stop push button switch with red mushroom cap is designed for industrial control panels and safety circuits. It uses a 1NC 1NO contact arrangement and a latching mechanism for a lockable stop, rated 600V and 10A.

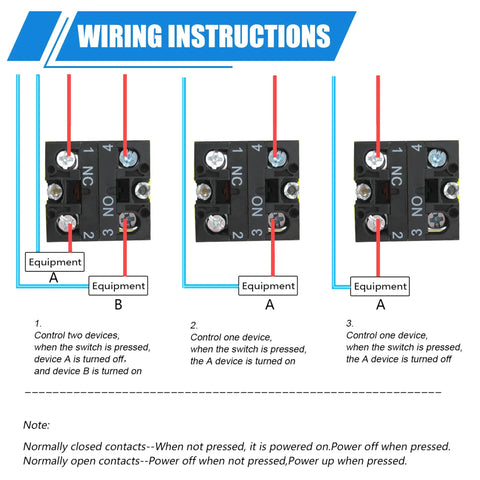

✅ Contact type: 1NC 1NO
✅ Latching action
✅ Button diameter: 40mm (1.6")
✅ Mounting hole diameter: 22mm (7/8")
✅ Panel thickness: adjustable up to 6mm (max 15/64")

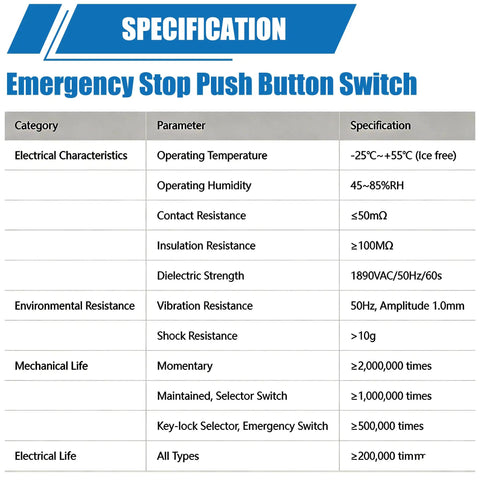

✅ Electrical rating: Ui 600V, Ith 10A

💡 What is a long-tail question buyers search for about emergency stop switches used in control panels?

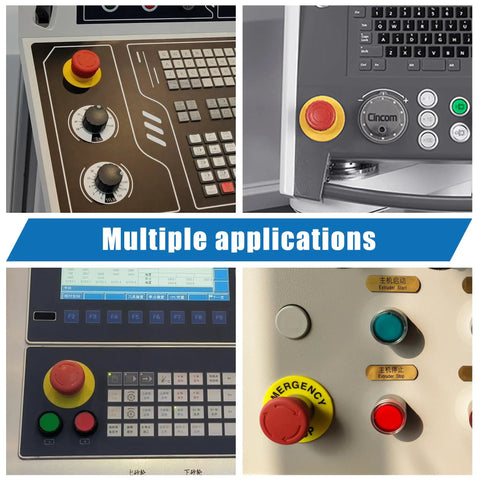

This handy switch offers a quick, lockable stop in safety circuits. - Common use: safety stops for machinery in control panels - Electrical rating: Ui 600V, Ith 10A - Cap and body: red mushroom cap, 22mm mounting hole - Fit: 6mm panel thickness max, 40mm button diameter
✝️
