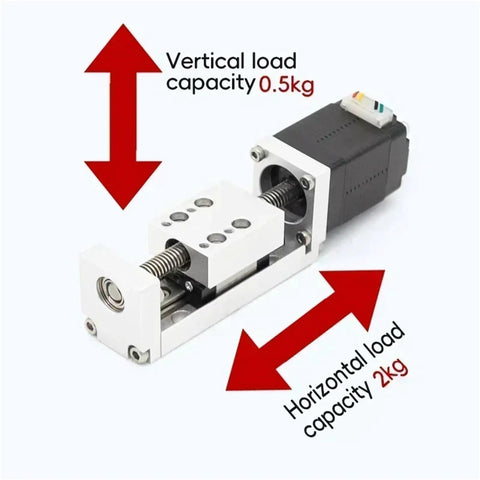

Ready To Roll Mini Electric Linear Actuator With NEMA8 Stepper Motor And 90MM Stroke 2MM Lead Ball Screw Slide Table CNC Module For Spot On Precision Motion Stages
✔️ Single Module 90mm Stroke 2mm Lead Ball Screw Mechanism
This single mini electric linear actuator pairs a compact Nema8 stepper motor with a precision ball screw slide table to deliver reliable X-axis movement. You typically mount it inside custom CNC machines, 3D printers, laboratory automation rigs, or robotic grippers that demand repeatable positioning without backlash.
✅ Nema8 stepper motor delivers consistent torque at low RPM settings✅ Ball screw lead of 2mm translates rotation into precise linear travel
✅ Compact slide table accommodates a maximum 90mm piston extension range
✅ Reinforced alloy housing dissipates heat during extended duty cycles
💡 How do you correctly wire and calibrate a Nema8 stepper motor paired with a miniature ball screw slide mechanism?
Mounting this compact motion control kit on your workbench requires basic DC wiring and a couple of software tweaks to keep things handy for quick adjustments.
- Connect step and direction pins to your Arduino or TB6560 driver interface and set microstepping ratios near 4 subdivisions for smoother tracking
- Verify power supply voltage matches the coil resistance rating to prevent thermal overload during continuous run periods
- Tune your G-code planner feed rates to stay under 50mm per second until you confirm zero backlash on the 2mm lead thread
- Lock down mounting holes with nylon washers to absorb vibration spikes and maintain tight tolerances over time
