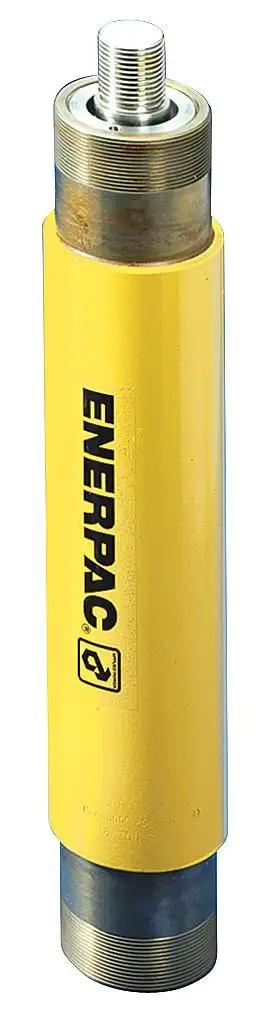

RD-2510 Double-Acting Hydraulic Cylinder, 25 Ton Capacity, Two-Port Design, 10.25 Inch Stroke, Precision Lifting and Pushing Tool With Baked Enamel Finish

25-Ton Double-Acting Hydraulic Cylinder with 10.25 in Stroke
✔️ Single cylinder, 25 tons, 10.25 in stroke, two-port design

This 25-ton, double-acting hydraulic cylinder is designed for precise lifting and pushing in production settings. It uses two ports to extend and retract the 10.25" stroke and features a baked enamel finish for corrosion resistance. It accepts foot or flange mounting attachments (sold separately) for flexible installation.

✅ 25 tons capacity
✅ Stroke length 10.25 inches
✅ Maximum cylinder capacity (advance/retract) 25 tons / 11 tons
✅ Effective area (advance/retract) 4.91 in² / 2.15 in²
✅ Oil capacity (advance/retract) 50.31 in³ / 22.01 in³
✅ Cylinder bore diameter 2.50 inches
✅ Collapsed height 20.69 inches
✅ Extended height 30.94 inches
✅ Outside diameter 3.63 inches
✅ Weight 46.0 lb
✅ Finish baked enamel for corrosion resistance
✅ Ports are quick-connect CR-400 female couplers for CH-604 male couplers (sold separately)
✅ Mounting: accepts foot or flange attachments (sold separately)

💡 What is a double-acting hydraulic cylinder used for in industrial lifting and pushing tasks?

They provide bidirectional force for controlled lifting and positioning in production environments.

- They deliver bidirectional force for lifting and positioning in production lines
- They connect via two ports for extend and retract to ensure smooth movement
- They mount with foot or flange attachments for fixture flexibility
