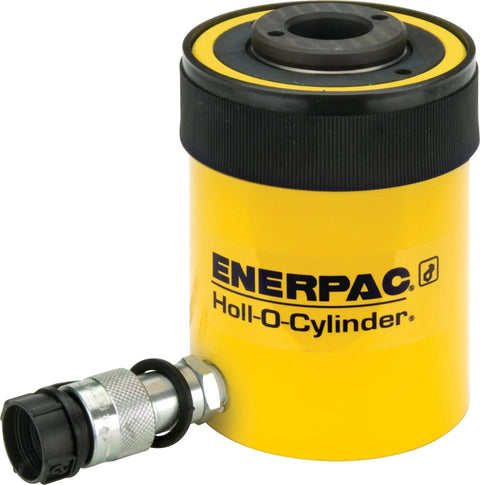

RCH302 Single Acting Hollow Plunger Hydraulic Cylinder 30 Ton Capacity One Port 2.5 Inch Stroke Heavy Duty Push Pull Capabilities For Testing Maintenance And Tensioning
✔️ 30-ton capacity, 2.50 in stroke, hollow plunger, single port, yellow
This single-acting hollow-plunger hydraulic cylinder handles 30 tons of force with a 2.50 inch stroke, built for testing, maintenance, and tensioning on industrial rigs. The hollow plunger supports push-pull tasks by allowing a pull action through internal pathways.
✅ Capacity: 30 tons (36.1 max)
✅ Stroke: 2.50 inches
✅ Bore: 3.50 inches
✅ Port: 1/4 inch NPTF quick-connect CR-400 female
✅ Hollow plunger enables push-pull applications
✅ Spring-return, single piston rod
✅ Baked enamel finish resists corrosion
✅ Weight: 24 lb
✅ Extended height: 9.53 inches; Collapsed height: 7.03 inches
✅ Outer diameter: 4.50 inches; Center hole: 1.31 inches
✅ Oil capacity: 18.05 cubic inches
💡 What is a single-acting hollow-plunger hydraulic cylinder used for in testing and tensioning?
These handy tools provide push and pull action for cycles in testing, maintenance, and tensioning settings.
- Handy for delivering force in one direction on test rigs - Allows pull-back via hollow plunger when cycles alternate - Suitable for tensioning and alignment tasks
