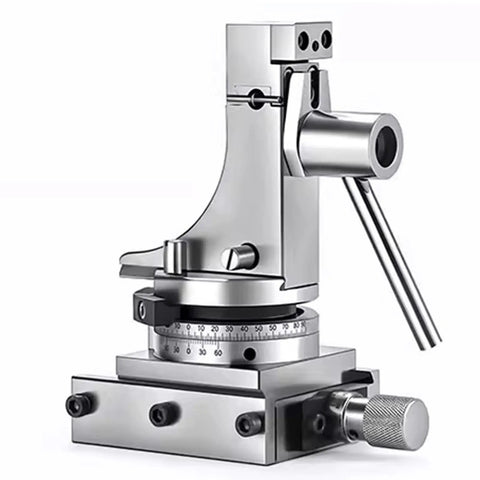

Radius And Angle Grinding Wheel Dresser With Sliding Base Precision 0.01mm Versatile Wheel Dressing Tool For Inclined Surface And Curve Grinders Pro Grade Contour Dressing For Concave Or Convex Shapes
✔️ 1x grinding wheel dresser with micrometer 0.01mm precision
The grinding wheel dresser is a precision tool crafted to dress both radius and angle wheels, helping maintain wheel geometry for better grinding on curved surfaces. It’s a handy addition in metalworking shops and machine shops where wheel contour and finish matter for precision work.

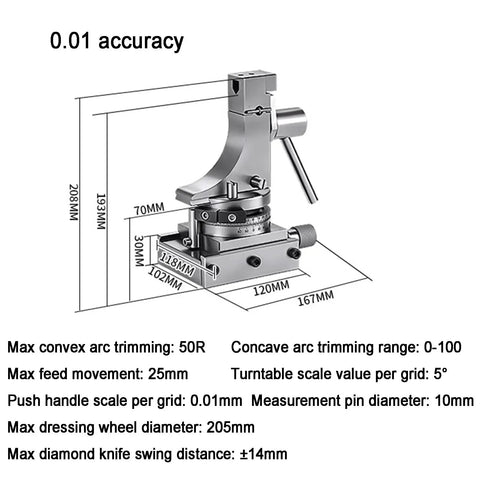

✅ Material: Metal
✅ Accuracy: <0.01mm
✅ Center Height: ±165 mm (±6.50 in)
✅ Max wheel diameter: Φ20 mm (0.79 in)
✅ Max swing of diamond cutter: ±12 mm (±0.47 in)
✅ Max translation of feed: 25 mm (0.98 in)
✅ Feed per division: 0.01 mm (0.0004 in)
✅ Max convex arc: 50 R
✅ Concave arc range: 0-100
✅ Diameter of measuring pin: 10 mm (0.39 in)
✅ Scale per grid (turntable): 5 in (127 mm)
✅ Maximum diameter of dressing wheel: 205 mm (8.07 in)
Product includes: 1*Grinding Wheel Dresser
💡 What is a grinding wheel dresser used for in metalworking? This handy tool helps keep wheels true and improves surface finish on curved workpieces.
- Maintains wheel shape and sharpness for consistent grinding
- Allows precise dressing of radius and contour wheels
- Offers fine adjustment for small radii via micrometer-like control
- Supports convex and concave surface dressing tasks
