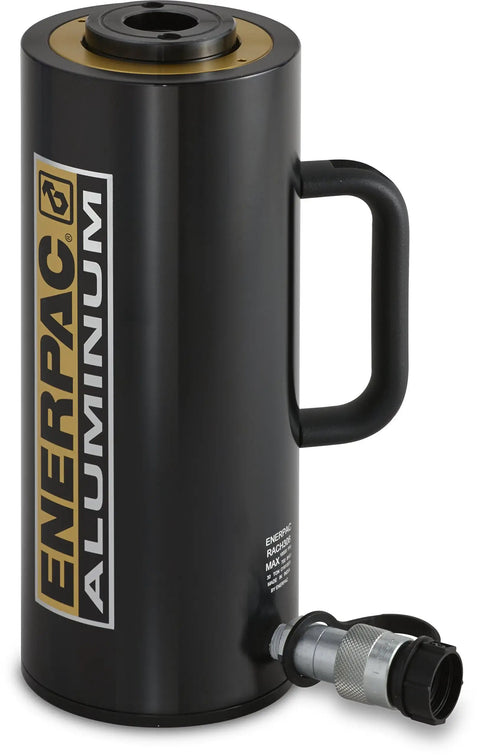

RACH-306 Aluminum Hollow Plunger Hydraulic Cylinder With 30 Ton Capacity Single Port 5.91 Inch Stroke For Testing Maintenance And Tensioning On The Job Site

Aluminum Hollow Plunger Cylinder, 30 Ton Capacity
✔️ 30-ton capacity, 5.91 in stroke, single port aluminum body

The RACH-306 is a single-acting aluminum hydraulic cylinder designed for on-site testing, maintenance, and tensioning tasks. It features a hollow plunger and a built-in stop ring to prevent over-extension. The lightweight construction keeps it handy for portable use on job sites.

Key specs

✅ Cylinder capacity: 30 tons (39.6 max)
✅ Stroke length: 5.91 inches (150.0 mm)
✅ Plunger diameter: 2.76 inches (70.0 mm)
✅ Outside diameter: 5.12 inches (130.0 mm)
✅ Collapsed height: 13.12 inches (333.7 mm)
✅ Extended height: 19.02 inches (483.3 mm)
✅ Oil capacity: 46.77 in3 (766 cm3)
✅ Weight: 24.6 lb (11.2 kg)
✅ Built-in stop ring, removable saddle, base plate for protection
✅ Aluminum body with hard-coat finish and composite bearings

💡 What is an aluminum hydraulic cylinder used for in testing and maintenance tasks on job sites?

This handy tool helps apply controlled force and movement on loads up to 30 tons. - Push and pull operations up to 30 tons in a compact package - Single-acting with one port and spring return for simple setups - Lightweight aluminum body with protective saddle and baseplate
