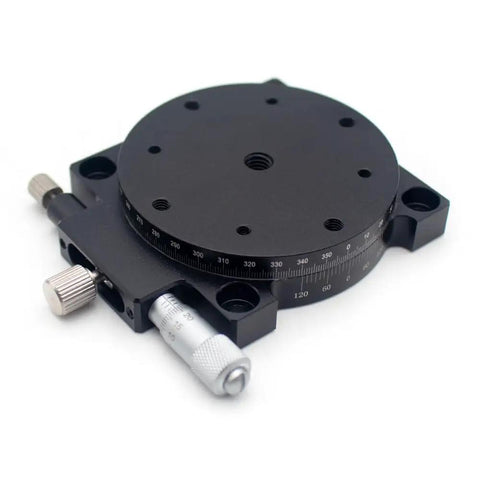

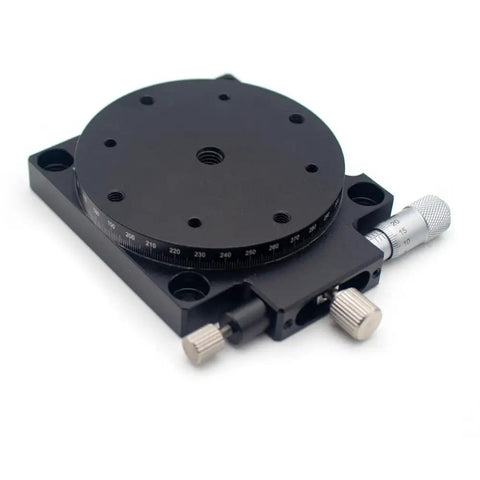

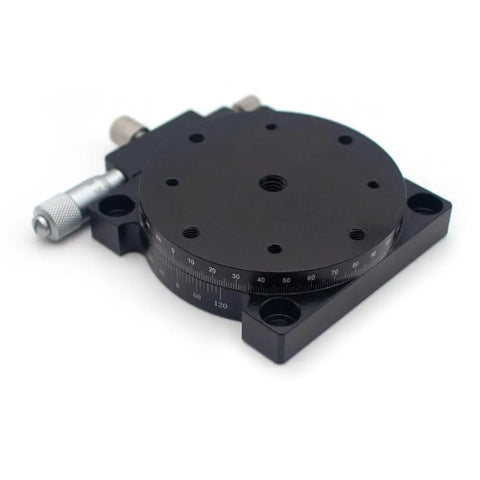

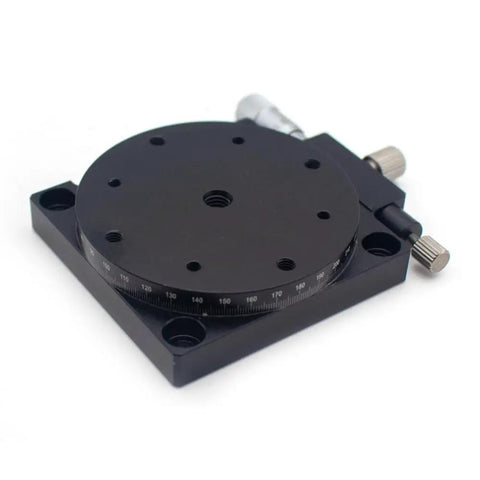

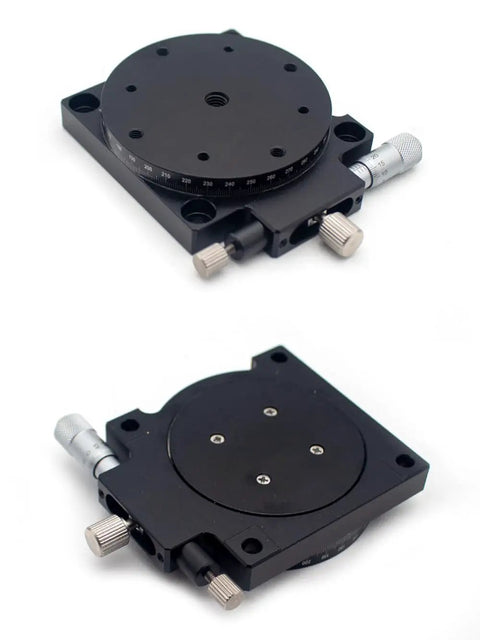

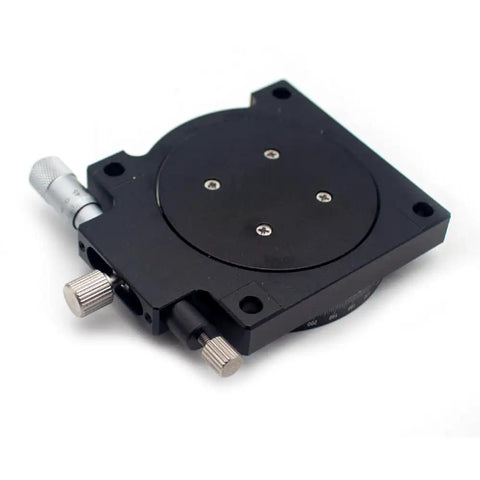

R-Axis Rotary Stage With 360-Degree Coarse Rotation And Fine-Tune Range Of Five Degrees Through A Micrometer Drive For Optical, Laboratory And CNC Projects On A Rock-Solid Crossed-Roller Platform RS60-L

Single RS60-L R-Axis Rotary Stage: 360° coarse + ±5° fine
✔️ 360° coarse to ±5° fine with micrometer drive; 60 mm dia stage

This manual R-axis rotary stage provides precise angular positioning for optical, lab, and CNC work. Built on a crossed-roller platform, it delivers stable coarse rotation with fine micrometer tuning for repeatable alignment.

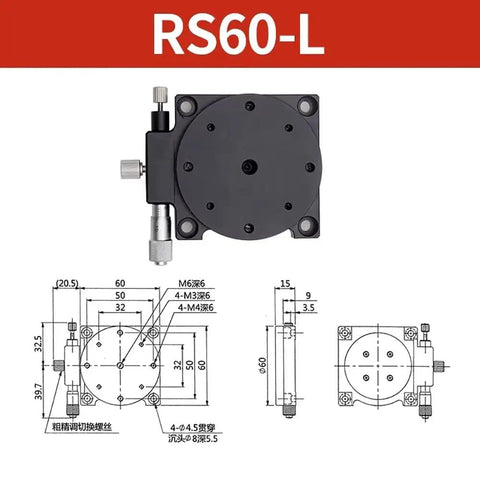

✅ Table Diameter: 60 mm
✅ Table Thickness: 15 mm
✅ Rotation Range: 360° (Coarse), ±5° (Fine)

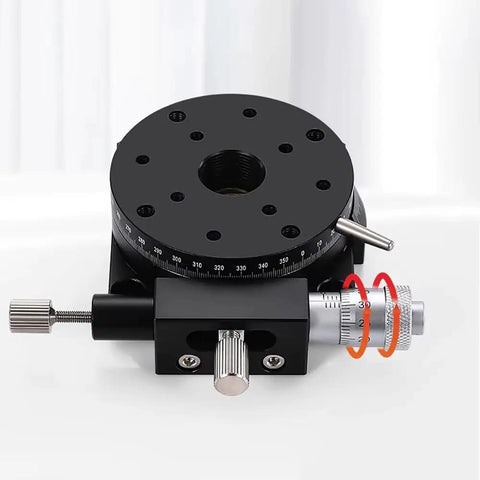

✅ Micrometer Drive: 0.96 arc-min per division
✅ Concentricity: ≤ 0.03 mm
✅ Parallelism: ≤ 0.03 mm
✅ Load Capacity: 29.4 N (≈3 kg)
✅ Weight: 0.16 kg

💡 What is an R-axis rotary stage used for in precision alignment in optical and CNC setups? A handy, reliable way to orient components with high repeatability. - Coarse 360° rotation with fine ±5° adjustment - High-resolution micrometer drive for precise angles - Crossed-roller platform minimizes wobble and ensures concentricity - Ideal for optical alignment, calibration, and measurement tasks
