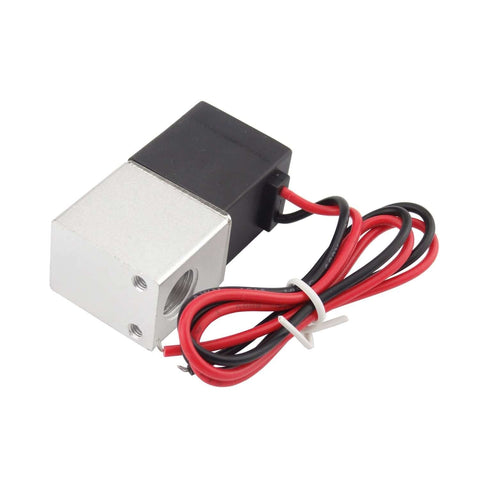

Quarter Inch DC 12V Two Way Normally Closed Solenoid Air Valve Stainless Steel Heavy Duty Electric Pneumatic Valve For High Demand Systems Zero Differential 0 PSI Operation Encapsulated Coil Mounts In Any Position SMC Compatible
✔️ 0 PSI operation, 1/4 in ports, 12V DC coil, NC valve
This single-unit solenoid valve is a 1/4 inch DC 12V two-way normally closed device designed for air control in high-demand pneumatic systems. It features an anodized aluminum body, an encapsulated coil for continuous duty, and compatibility with standard SMC valve interfaces. It can be mounted in any position and is packaged as a single unit.
✅ Port size: G1/4 DN8 (6.35 mm)
✅ Inlet/outlet: G1/4 DN8
✅ Coil power: 6.5 W, DC 12 V, 100% ED
✅ Body: anodized aluminum; seal: NBR
✅ Material: armature brass, plunger stainless steel
✅ Response time: <20 ms
✅ Operating temp: -10 to 80 °C
✅ Flow: 0.23 Cv; 22 SCFM @ 100 PSI
✅ Operating pressure: 0.05-0.7 MPa; can operate at 0 PSI vacuum
💡 What is a 1/4 inch DC 12V solenoid valve used for in pneumatic systems?
This handy device is used to control air flow in automated systems, enabling on/off control and vacuum-capable operation in many setups.
- On/off control for pneumatic lines
- 0 PSI vacuum capability for special applications
- Durable aluminum body with stainless steel internals
- Encapsulated 100% ED coil for continuous duty
