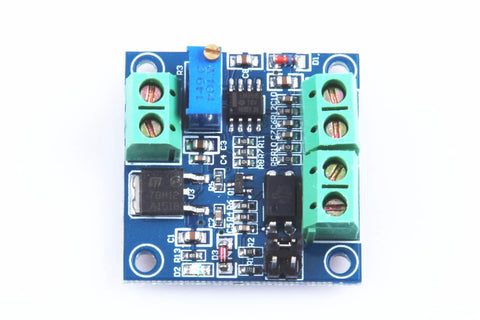

PWM To Voltage Module Converts PWM To Analog 0 To 10 Volt Signal For PLCs And Industrial Control Panels Ideal For Signal Interface Switching And Duty Cycle Control
✔️ PWM input 1-3 kHz, 0-10 V output, DC12-30V operation

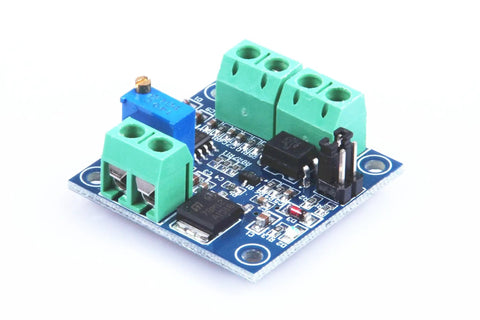

This compact PWM-to-voltage converter turns a digital PWM signal into a smooth 0-10V analog output, making it ideal for PLCs and industrial control panels. It operates from a DC supply of 12-30V and fits easily into compact control enclosures.
✅ PWM input frequency: 1-3 kHz
✅ Output: 0-10V analog signal

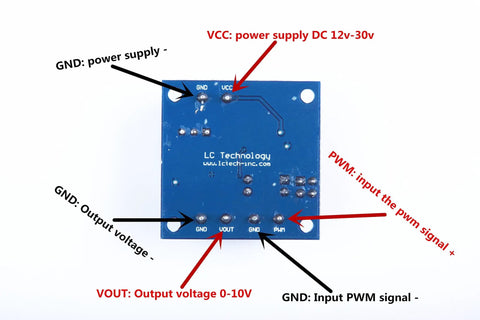

✅ Power supply: DC 12-30V, >100mA
✅ Size: 33 x 33 x 16 mm; Weight: 11 g

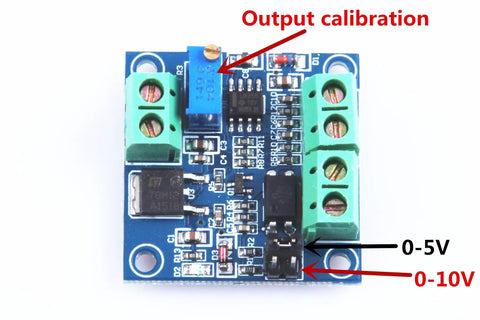

✅ Tunable with onboard potentiometer for accuracy
✅ Calibration recommended when frequency changes
💡 What is a PWM to voltage converter used for in industrial control systems? This handy interface converts PWM duty cycle into a stable 0-10V analog signal for PLCs and control panels. - Converts PWM duty cycle to 0-10V analog signal for PLC inputs - Interfaces digital PWM sources with analog inputs on industrial controllers - Calibrates output with onboard potentiometer for accurate voltage levels
