PWM To Analog Converter Module Plug And Play 1 To 3 KHz PWM Signal To 0 To 10V Output 5V Or 24V Input 0 To 100 Percent Digital To Analog Voltage Board For DIY Projects CNC Audio Lab Controls

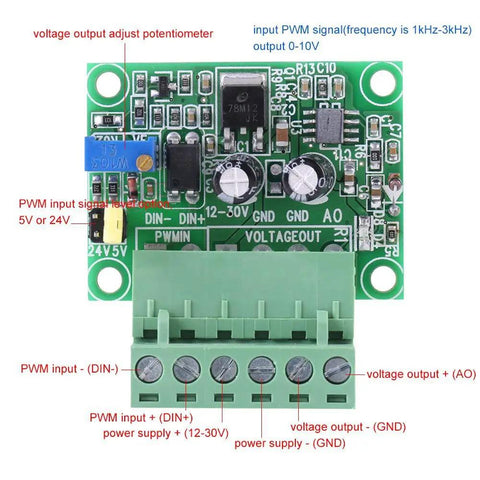

✔️ Inputs: 5V or 24V PWM; outputs: 0-10V or 0-5V; supply 12-30V
This compact PWM to analog voltage converter plugs into control panels, CNC setups, PLC interfaces, and lab rigs. It turns a digital PWM signal into a stable 0-10V analog output, making it ideal for CNC controls and automation projects.

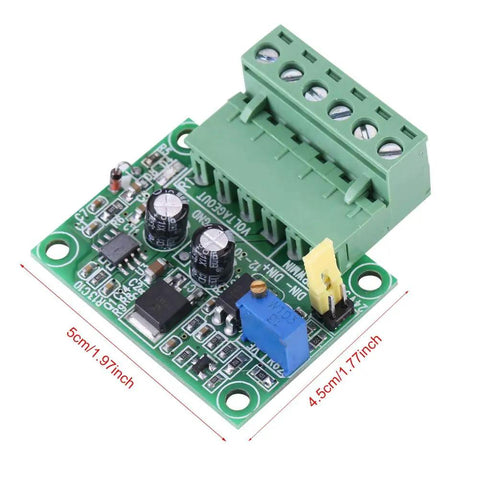

✅ Weight: 20 g; Size: 50 x 45 mm
✅ Main function: PWM to 0-10 V analog output
✅ Input: PWM at 1-3 kHz, 4.5-10 V peak to peak or 5 V with jumper
✅ Output: 0-10 V or 0-5 V depending on jumper
✅ Power: 12-30 V supply; 1 pc package
✅ Package: 1 pc PWM to voltage converter
💡 What is a PWM to analog converter module used for in control systems? A handy overview for evaluating this device in automation projects. - Converts PWM into a stable analog signal - Used with CNC controllers, PLC interfaces, and lab rigs - Supports 1-3 kHz PWM frequency and 12-30 V supply - Simple plug and play wiring for quick setup
