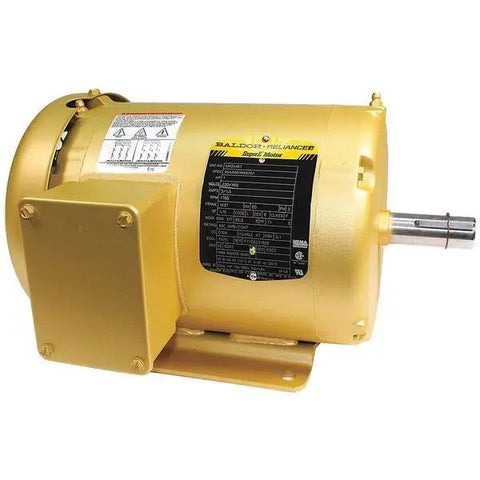

Pro Grade Three-Phase General-Purpose Motor 1 HP 143T Frame 208-230/460V AC 1760 RPM TEFC Enclosure Rigid Base Mounted Full Load Amps 3/1.5 A F Class Insulation Built for Commercial Shop Floors
✔️ 208-230/460V AC, 1760 RPM, TEFC enclosure, rigid base mount
This general-purpose, three-phase motor is built for commercial shop floors and is a common choice for drives on conveyors, pumps, fans, and small machine tools. Its totally enclosed fan-cooled (TEFC) design keeps windings protected in dusty environments while the rigid base mounting provides straightforward installation on solid surfaces.
✅ 1 HP nominal power
✅ Frame 143T
✅ Voltage 208-230/460V AC
✅ Full Load Amps 3/1.5 A
✅ 60 Hz operation
✅ TEFC enclosure (Totally Enclosed Fan Cooled)
✅ Ball bearings
✅ Insulation Class F
✅ Service Factor 1.15
✅ Continuous duty
✅ CW/CCW shaft rotation
💡 What is a general-purpose three-phase motor used for in industrial settings?
These handy motors power a wide range of equipment on shop floors, offering steady rotation and reliable operation.
- Drive conveyors, pumps, fans, and small machine tools
- Operate from common 208-230/460V three-phase power
- Support continuous duty with Class F insulation and 1.15 service factor
- Mounts easily with rigid bases for stable alignment
