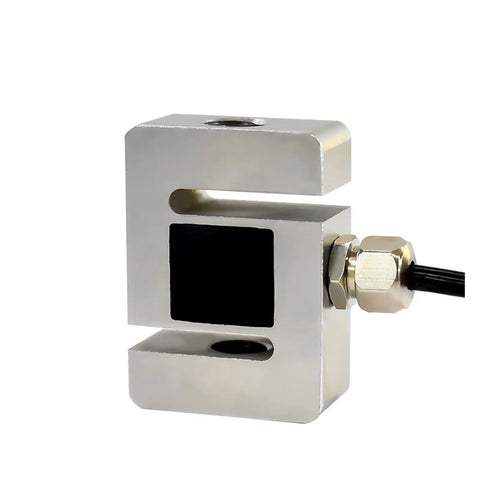

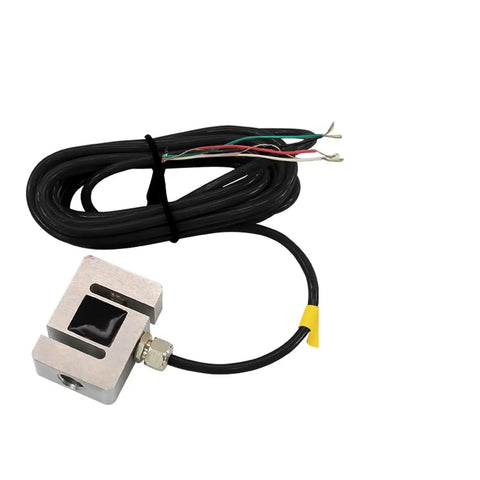

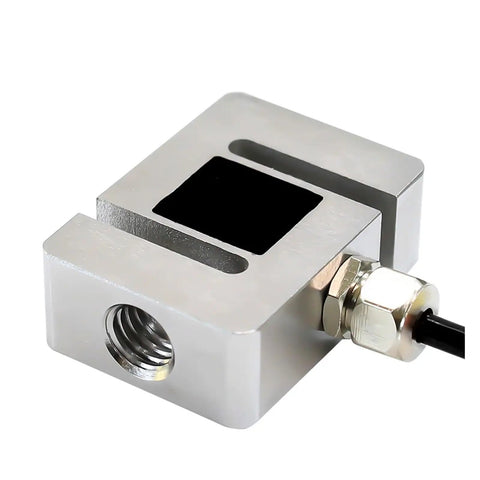

Pro Grade S Beam Load Cell Sensor For Flat Single Point Weight Measurement, Compression Force Sensor Simulating Shear, 2.0 Millivolts Per Volt Output, 5 to 15 Volt Excitation, 350 Ohm Impedance, Industrial Scale Component

S Beam Load Cell for Flat Single Point Weight
✔️ Output 2.0 mV/V, excitation 5-15V, 350 Ohm, 200 kg rating

This S-beam load cell sensor is a flat single-point compression sensor designed for precise weight measurement, typically used in digital scales, bench weigh systems, and compact force-testing setups.

✅ Output: 2.0 ±0.05 mV/V
✅ Impedance: 350 Ohm
✅ Excitation: 5-15 V
✅ Rated capacity: 200 kg
✅ Temperature range: -20°C to 80°C
✅ Non-linearity: ±0.03%
✅ Insulation resistance: 5000 MΩ (50VDC)
✅ Safe overload: 1.5x

💡 What is an S beam load cell used for in flat weight measurement applications?

The handy device is used for precise weight sensing in compact weighing setups.

- flat single-point weight measurement applications
- digital scales and bench weighing use
- compatible with 5-15 V excitation and 2.0 mV/V outputs
✝️
