Pro Grade Precision Linear Scale Encoder 0.005mm Optical Scale With 5um Grating Glass Ruler Sensor for DRO Lathe Milling CNC Wire EDM Cutting Machine 300-320mm White

Pack of 1 Pro Grade Linear Scale Encoder for CNC DRO 0.005mm

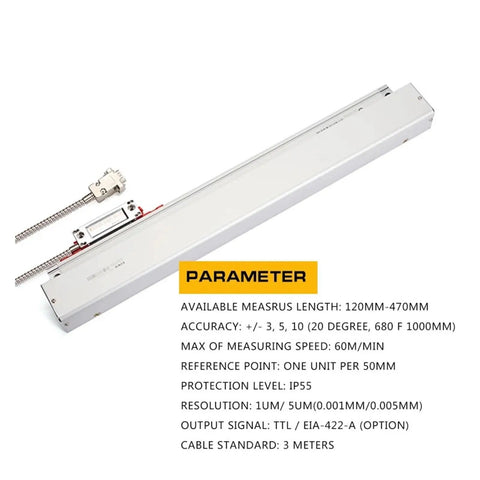

✔️ Pack of 1, 5µm resolution, IP54, 3 m cable, 25x34 mm cross-section

This high-precision optical linear scale encoder serves as the backbone for DRO systems, delivering accurate linear position data on CNC machines. It is commonly used on mills, lathes, grinders, and wire EDM equipment to improve measurement reliability in manufacturing environments.

✅ Operating temperature: 0-50°C (32-122°F)

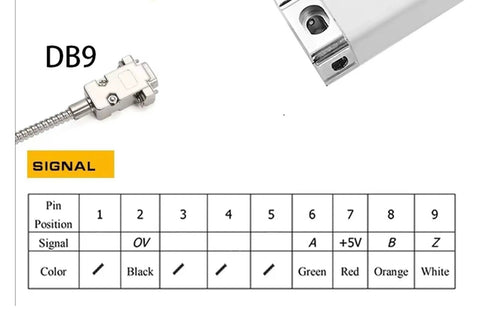

✅ Output mode: TTL
✅ Protection: IP54 waterproof and rust-resistant
✅ Resolution: 5 µm / 0.005 mm
✅ Applications: Mill, Lathe, Grinder, CNC
✅ Max measuring speed: 60 m/min
✅ Cross section: 25 mm × 34 mm (0.98 in × 1.34 in)

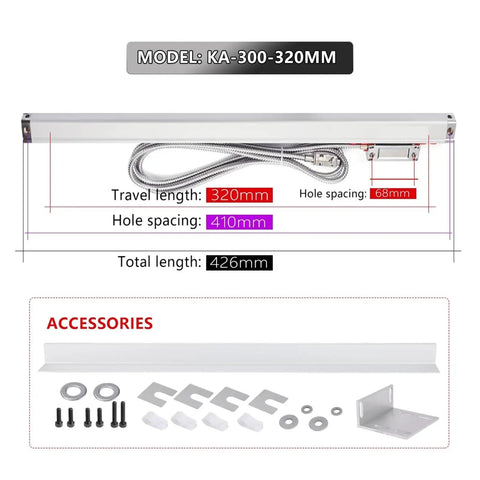

✅ Scale total length: Travel + 106 mm (Travel + 4.17 in)
✅ Installation holes distance: Travel + 90 mm (Travel + 3.54 in)
✅ Cable length: 3 meters

💡 What is a precision linear scale encoder used for in CNC machines?

Handy for precise position feedback in automated machining workflows. It translates linear motion into digital data for DRO systems and CNC control.

• linear scale encoder for CNC DRO position feedback
• high-resolution 5 µm optical scale for milling and turning
• IP54-rated rugged sensor for harsh shop environments
• TTL output for easy integration with control systems
