Pro Grade Manual XY Sliding Stage With Dovetail Guide And Lead Screw Fine Tune For Precise Lab And Optical Alignment Ideal For Waveguide Alignment Fiber Coupling Micropositioning And High Stability

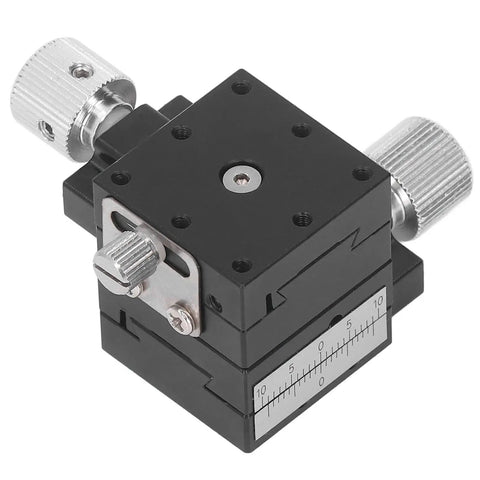

Single-unit XY Sliding Stage with Dovetail Guide
✔️ 0.5 mm per knob rotation for precise manual positioning

This compact manual XY sliding stage offers precise two-axis motion using a lead screw fine-tune and a dovetail guide. It’s a compact linear slide unit built from aluminum alloy, featuring a 25 x 25 mm footprint for tight optical benches, and it’s ideal for optical waveguide alignment, fiber coupling, and micropositioning in lab and manufacturing settings.

✅ Lead screw fine-tune mechanism delivers 0.5 mm per knob rotation for precise positioning
✅ Dovetail guide provides smooth, stable motion, reducing wobble under load

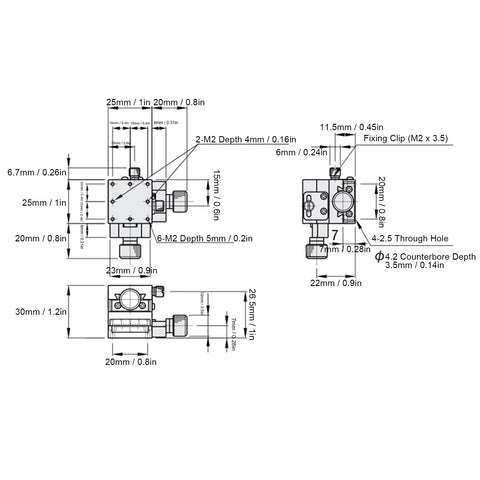

✅ 25 x 25 mm compact footprint fits tight spaces on optical benches
✅ Aluminum alloy body with black anodized finish for durability in labs
✅ Ideal for waveguide alignment, fiber coupling, and micropositioning tasks

💡 What is a manual XY sliding stage used for in precision optical setups?

It helps with precise two-axis positioning in handy alignment tasks.

- Highly precise two-axis positioning for alignment workflows - Lead screw fine-tune delivers 0.5 mm per knob rotation - Dovetail guide ensures smooth travel with minimal wobble under load - Compact 25 x 25 mm footprint fits tight benches in optical labs
