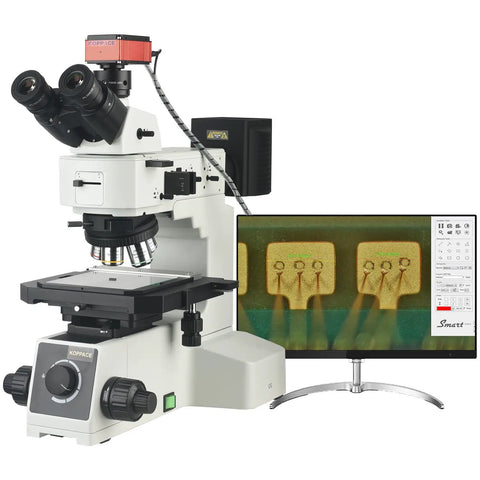

Pro Grade Light And Dark Field Electron Metallographic Microscope With 4K HD Measurement Camera For Direct Computer Or Monitor Connection Via HDMI USB 3 And LAN For Quick Setup And Precise High Resolution Imaging Plug And Play Ready
✔️ HDMI, LAN, USB 3.0 outputs; 8.3MP sensor, plug-and-play
This high-end metallographic microscope delivers light and dark field imaging with a 4K measurement camera, designed for labs and research benches. It supports direct monitor or PC connection via HDMI, LAN, and USB 3.0, making it easy to set up and document microstructures.
✅ Output options include HDMI, LAN, and USB 3.0 for direct monitor or PC connection
✅ 8.3 MP CMOS sensor, 1/1.8 inch size, 2.0 μm pixels; 60 fps at 3840x2160
✅ Optical magnification: 50X, 100X, 200X, 500X
✅ Objective lenses: LMPlan 5X/0.15 BD WD 9mm; LMPlan 10X/0.3 BD DIC WD 9mm; LMPlan 20X/0.45 BD DIC WD 3.4mm; LMPlan FLN 50X/0.55 BD WD 7.5mm
✅ Eyepieces: PL10X/22mm
✅ Trinocular viewing tube: 30° tilt; PD 50-75mm; diopter ±5
✅ Dual USB ports: mouse and USB 3.0 to PC; optional USB drive or mouse interface

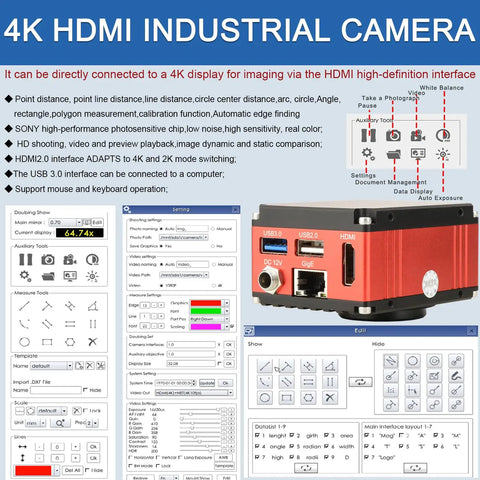

✅ 4K camera with 8.3 MP sensor; 60 fps; photo resolution 7680x4320

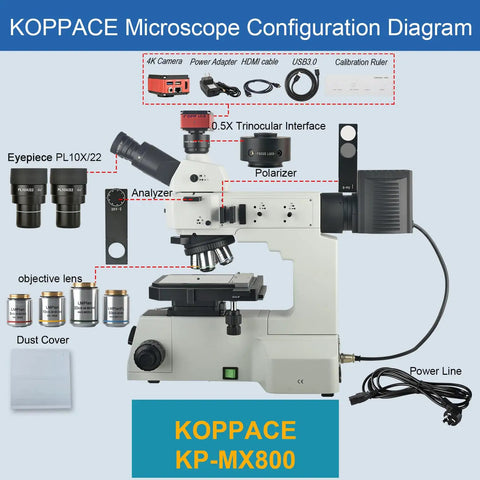

✅ Includes analyzer, polarizer, LBD color filter, 4-inch platform, calibrating ruler, HDMI cable, power adapter
💡 What is a metallographic microscope used for in materials science and how does a 4K camera improve analysis?
In short, it's a handy instrument for inspecting metal microstructures and documenting results with high-res digital imaging.
- high-resolution microstructure imaging with 4K camera- direct HDMI/LAN/USB 3.0 connection for quick setup and data capture

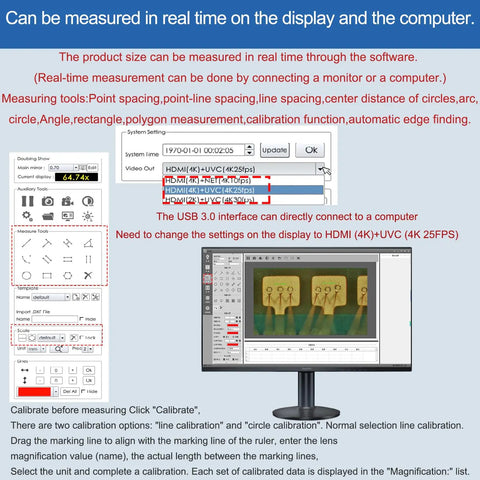

- measurements and documentation on monitor or PC
✝️
