Pro Grade IP55 Linear Scale Encoder 5um Precision With 12 Inch Travel For Lathe And Milling DRO Tools Glass Grating Slideways For Rock Solid Machining And Reliable Feedback
✔️ 320mm glass scale length, IP55 sealing, TTL output via 9-pin DSUB9
The Pro Grade IP55 linear scale encoder is a rugged glass-grating DRO component designed for lathe and milling setups. It provides precise position feedback in metalworking environments, with IP55 sealing to resist dust and coolant and a 320mm scale length paired with 12in travel for broad coverage on typical machines. Includes mounting plate, screws, and user manual for quick installation.
✅ 5µm precision
✅ IP55 sealing protection for harsh shop use
✅ 320mm glass scale length (12.60 in) for common setups

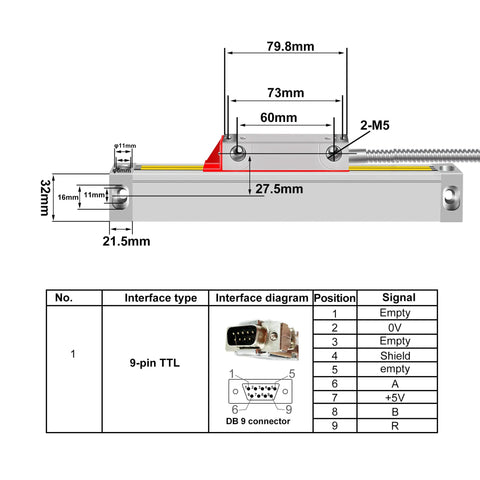

✅ TTL output via 9-pin DSUB9 connector
✅ 100% laser calibrated for accuracy

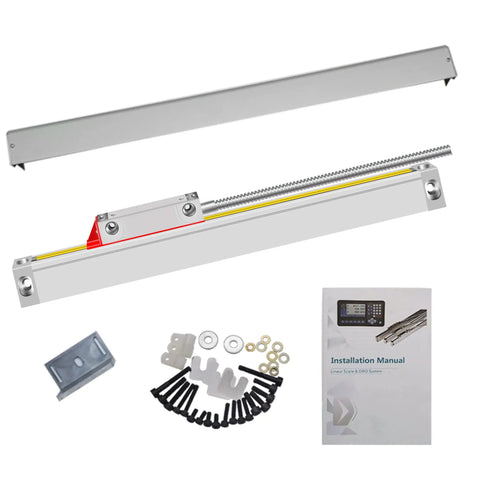

✅ Includes 1x scale, L-mount plate, screws, and user manual
💡 What is a sealed IP55 linear scale encoder used for in CNC machining applications?
Short intro: It provides accurate, reliable feedback for DROs on lathes and milling machines.
- It offers precise position sensing for tool paths - IP55 protection guards against dust and coolant spray - TTL output on a DSUB9 makes integration with control systems smooth - 320mm scale length fits common machine configurations✝️
