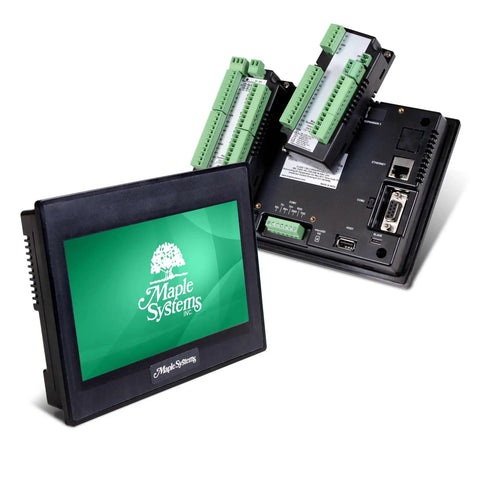

Pro Grade IO Module For HMI PLC Combo Touchscreens HMC3 M1212Y0200 V2 12 Digital Inputs 12 Digital Outputs 10 Relay 2 PNP 2 Analog Inputs 24VDC With High Speed Counter Inputs
✔️ 12 DI, 12 DO (2 PNP, 10 relays), 2 AI, 24VDC, 200kHz counters, PWM 1kHz
This compact IO module is designed for HMI and PLC panels, delivering reliable digital I/O, analog inputs, and fast counting in a compact 48mm x 108mm x 35.7mm enclosure.
✅ 12 digital inputs and 12 digital outputs (2 PNP, 10 relays) for flexible control
✅ 2x 16-bit analog input channels for precise sensing
✅ High-speed counter inputs up to 200 kHz and a PWM output up to 1 kHz
✅ 24VDC operation with 5 mA input per channel and 250 mA per output
✅ Analog inputs support 0-20 mA, 4-20 mA, 0-10 V, 0-5 V with ±0.2% accuracy at 25°C
✅ Optical isolation on all I/O (>1.5 kV) and 0-60°C operating range, compact enclosure 48x108x35.7 mm
💡 What is a 24V IO module with high-speed counter inputs used for in HMI/PLC automation? This handy device puts digital and analog I/O, plus fast counting, in one rugged unit. - Handy for compact control panels with mixed digital and analog signals - Protects controllers with optical isolation across all I/O - Supports high-speed counting for motion sensing and PWM control - Ideal for 24VDC automation systems in manufacturing setups
