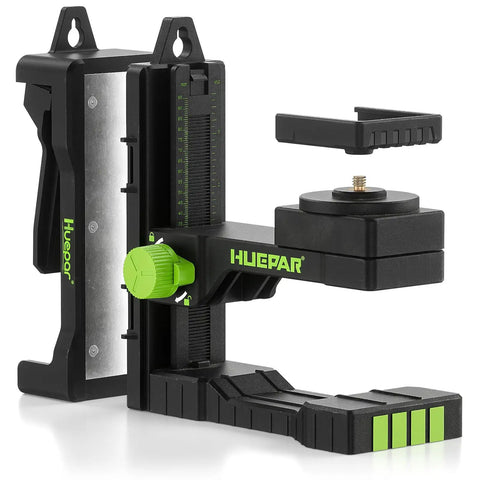

Pro Grade Fine Tuning Laser Level Mount With Magnetic Pivot Base And Adjustable Spring Clip 360 Degree Swivel Height Adjust Fits One Quarter Inch And Five Eighth Inch Threads Versatile Cross Line Laser Bracket PV16 Plus
✔️ 360° rotation, height adjust, magnetic base, 1/4-20 fit
The bracket holds cross line laser levels for precise alignment on walls, tripods, and magnetic bases. It supports 1/4"-20 and 5/8"-11 female threads; 5/8" adapter AD5/8 sold separately for compatibility.
✅ 1/4"-20 male thread; depth to back 9 cm (3.54 in); works with 1/4"-20 female thread lasers; AD5/8 adapter available for 5/8" threads.

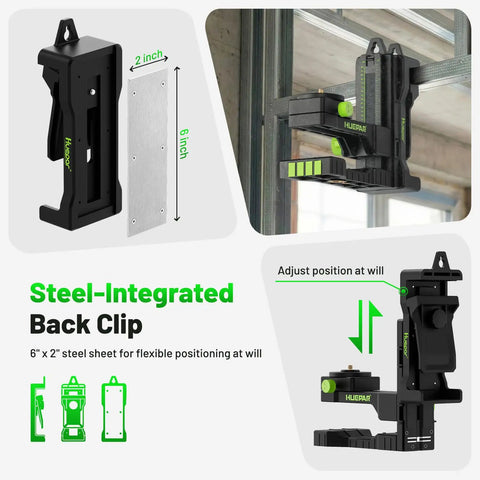

✅ Back Clip: adjustable opening fits objects up to 5 cm thick (1.97 in); nail hole for wall mounting.

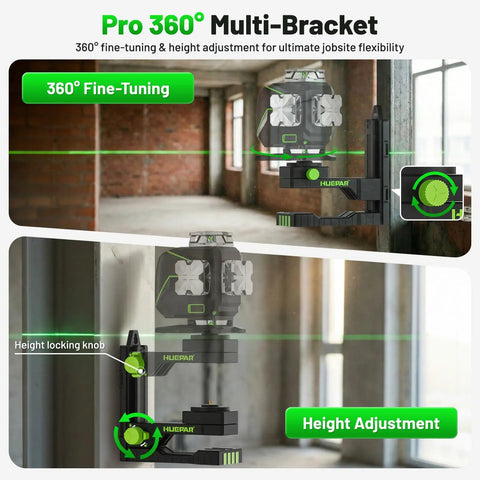

✅ Four fine-tuning knobs: left-right 0.8 cm (0.31 in); back-forward 5.5 cm (2.17 in); height 9.5 cm (3.74 in); rotation 360°; locking knob for height.

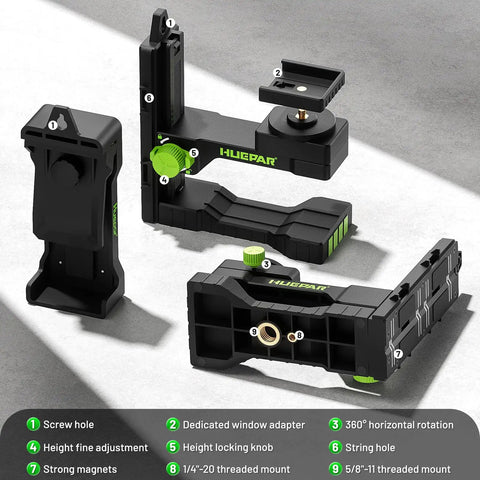

✅ Multiple installation methods: 1/4"-20 and 5/8"-11 female threads for tripods or laser poles; magnets allow mounting on back clip at any height or metal surfaces; slots for screws, nails, raceways, ropes, or steel sheets; PV16+ positioning bracket included.
✅ Dedicated Laser Window Adapter included (PV11+ compatible for certain Huepar models) to bring the laser window closer to the wall.
💡 What is a laser level mounting bracket used for in precision alignment and how does it improve setup? This handy bracket helps achieve precise alignment by giving adjustable positioning and stable mounting. - 1/4-20 and 5/8-11 thread compatibility for use with different laser levels and stands - 360° rotation and fine-tuning knobs for precise positioning from any angle - Magnetic back clip and adjustable opening for mounting on walls, metal surfaces, or odd shapes - Clear inch and millimeter readouts to verify measurements quickly on site
✝️
