Pro Grade 4000 mm Stroke Draw Wire Linear Displacement Sensor With 12 To 24V DC NPN Output 0.2 mm Per Pulse Resolution 1 M Shielded Cable High Speed Sensing Up To 6 M Per Second Wide 5V To 24V Supply For Precise Motion Monitoring

4000mm Stroke Draw-Wire Sensor for Precise Motion
✔️ 12-24V DC NPN output, 0.2mm/pulse, 4000mm stroke, 6m/s max

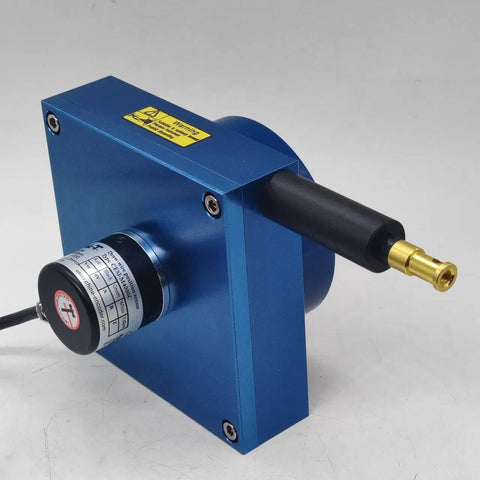

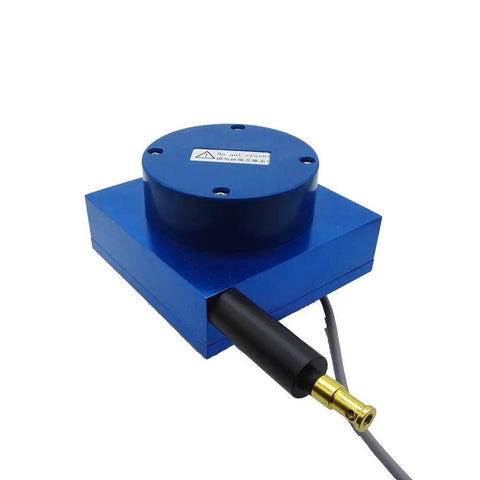

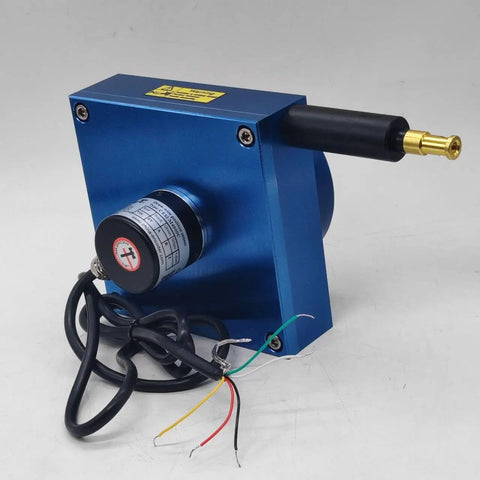

A high-precision draw-wire linear displacement sensor designed to monitor long-stroke motion in automation, robotics, CNC machines, and packaging lines. It delivers reliable position feedback with a shielded 1 m cable for rugged setups.

✅ Stroke travel: 4000 mm (157.5 in) maximum.
✅ Output: 12-24 V DC NPN compatible with common controllers.
✅ Resolution: 0.2 mm per pulse.
✅ Cable: 1 m shielded (39.37 in) for noise immunity.
✅ Speed: up to 6 m/s; max moving force: 16 kg.
✅ Supply range: 5-24 V DC broad compatibility.

💡 What is a draw-wire displacement sensor used for in precision motion control? This handy device tracks long-stroke movement and feeds position data to controllers. - Provides direct position feedback for automation and robotics. - Handy for CNC machines, conveyors, and packaging lines. - Easy integration with PLCs and motion controllers for reliable control.
