Pro Grade 3MT High Speed CNC Live Center For Precision Turning And Milling, Medium Duty, 4000 RPM, 882 Lb Load Capacity, 60 Degree Point, Morse Taper Size 3, 1.02 Inch Point Diameter, 1.24 Inch Point Length, 2.32 Inch Head Diameter

3MT High-Speed CNC Live Center for Precision Turning (1 Pack)
✔️ MT3 shank, 4000 RPM max, 882 lb capacity, 60° point

This high-speed CNC live center is built for precision turning and milling, delivering low runout and smooth support for workpieces in lathes and milling centers. Designed for medium-duty workloads, it’s a reliable choice for production runs requiring accuracy at up to 4000 RPM.

✅ MT3 Morse taper shank (MT3)
✅ Max RPM 4000
✅ Load capacity 882 lb (400 kg)
✅ Point angle 60°

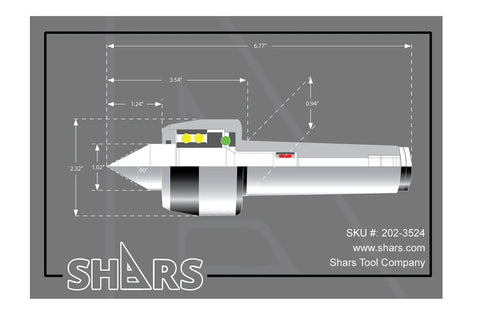

✅ Point diameter 1.02 in (25.9 mm)
✅ Point length 1.24 in (31.5 mm)
✅ Head diameter 2.32 in (58.9 mm)
✅ TIR 0.00019 in (0.005 mm)
✅ Pack size: 1 unit

💡 What is a CNC live center used for in high-speed turning and milling?

In short, this handy device supports rotating workpieces with minimal runout, enabling precise turning and milling on CNC machines.

• Improves runout control during high-speed machining
• Supports heavy workpieces with up to 882 lb load
• MT3 shank compatibility with standard tailstocks
