Premium Quality Top Shelf CNC Fourth Axis Rotary Kit With Four Jaw Scroll Chuck Harmonic Gearbox And 57mm Stepper Motor For Knockout Woodworking Engraving Jobs

CNC Fourth Axis Rotary Kit Single Set for Wood Engraving

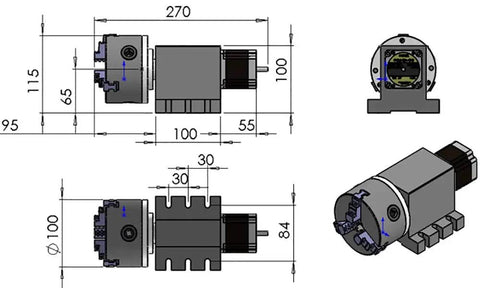

✔️ 100mm Chuck 100:1 Ratio 57mm Motor 260x110x105mm Set

This rotary fourth axis assembly merges a tight four jaw scroll chuck with a quiet stepper motor and harmonic gearbox. Builders mount it sideways on CNC router beds to index wood blocks and metal plates for continuous lettering and relief carving jobs.

✅ 100mm K11 scroll chuck handles round or square stock firmly
✅ 0.018 degree step size keeps engraved tracks perfectly aligned
✅ One hundred to one gear drop multiplies cutting torque
✅ Five seven millimeter driver accepts standard three amp input

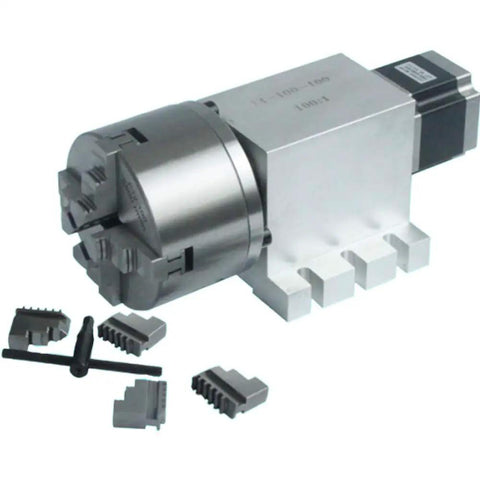

✅ Included anti claw tools and spanner simplify quick changes
✅ Solid seven kilogram frame absorbs vibration during cuts

💡 How does calculating microstep resolution affect accuracy on a reduced gear rotary indexer? Running the right math makes precision machining handy for complex sign projects. - Multiply stepper base pulses by driver subdivision and overall gear ratio to find your raw cycle count - Feed that figure through your control board to lock down exact degree increments without overshooting - Check terminal connections on the two wire leads before applying power to stop servo hunting - Test low speed feeds first to verify smooth tracking across longer material lengths

✝️
