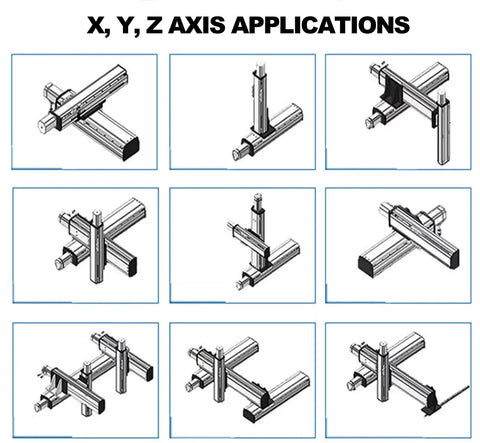

Premium 50mm Mini Linear Stage Actuator with 28 by 30 Stepper Motor and T Threaded Lead Screw Rod for Sick DIY CNC Router Builds Providing Hella Accurate X Y Z Axis Movement

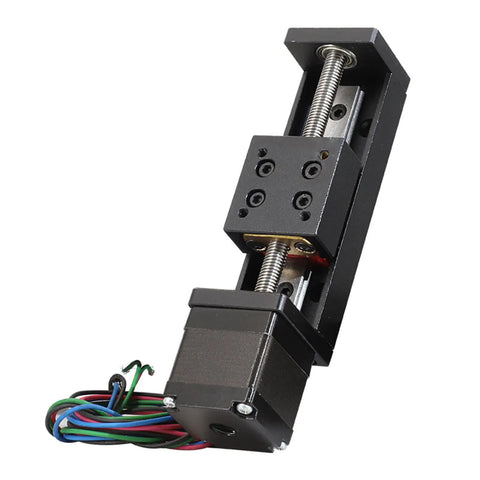

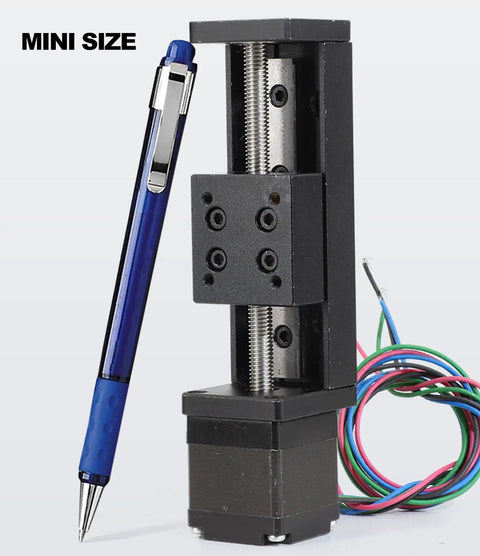

Compact 50mm Linear Slide Stage With Stepper Motor

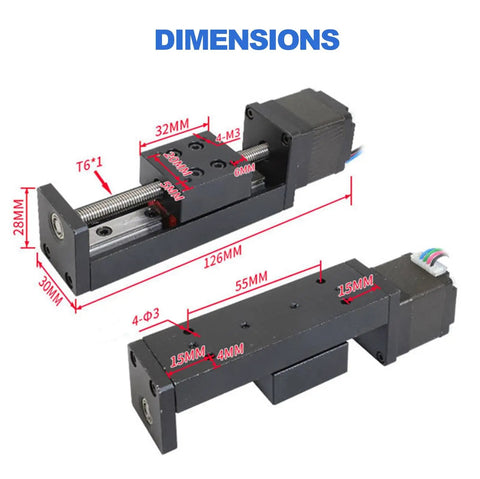

✔️50mm travel, 5kg horizontal load, 6mm lead screw, aluminum frame

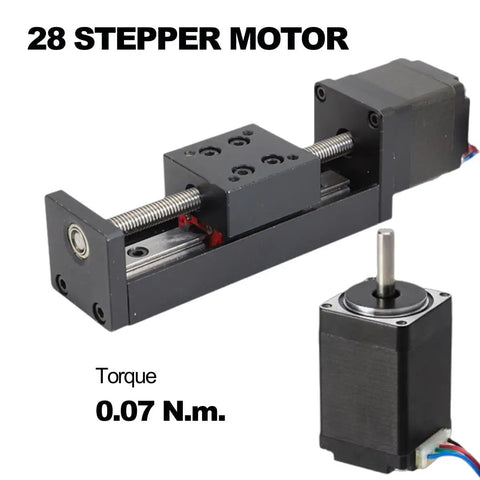

This single unit pack delivers a handy motion upgrade for compact CNC routers, laser cutters, and automated testers. The integrated 28 by 30 stepper motor mounts directly to the thickened plate, giving you smooth force transfer without extra brackets. Premium aluminum alloy and stainless steel rails handle daily workshop wear while keeping weight low for desk setups. Pulse generator inputs let you dial in speeds from zero to eight millimeters per second for precise control.

✅Effective travel spans 50mm or 2 inches for reliable axis positioning

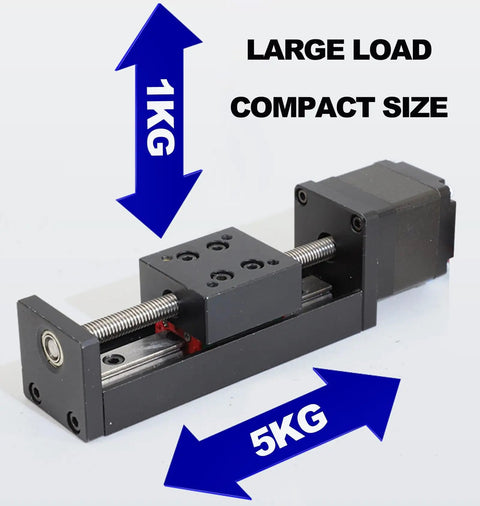

✅Horizontal rating holds up to 5kg or 10 pounds without bending
✅Vertical pull strength reaches 1kg or 2.2 pounds for lifting tasks

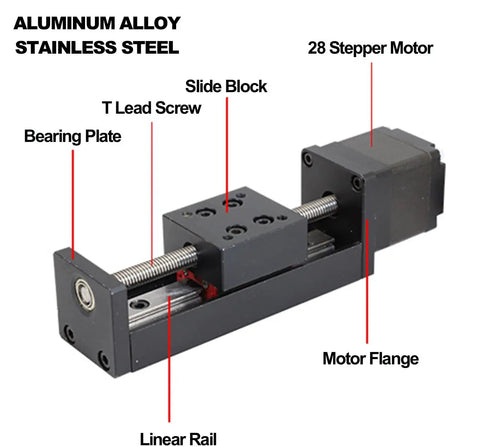

✅Solid alloy chassis and steel tracks minimize friction during runs

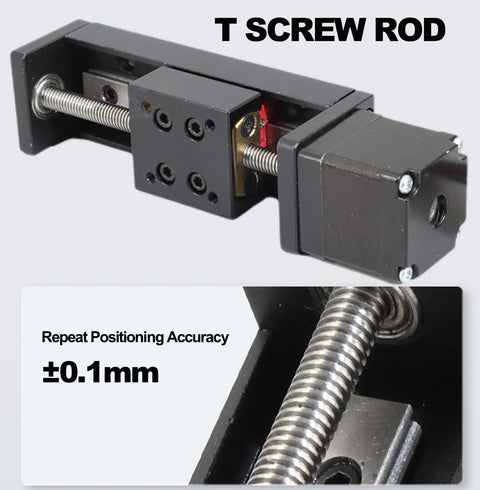

✅Repeatability stays tight at plus minus 0.1mm or plus minus 0.004 inches

💡How does a linear rail slide stage improve small scale 3D printer upgrades?
Tight mechanical tolerances turn hobbyist frames into accurate tools when you swap out loose belts for rigid guide systems. Your project gains consistent feedback loops since the stepper motor drives the T thread rod at a fixed ratio. Here is why builders prefer this combination for stable builds.
- Mount the bracket on a flat workbench to prevent deflection when cutting hardwoods or acrylic sheets
- Wire a standard driver board to the motor pins for clean step signals and microstepping flexibility
- Lubricate the stainless steel track monthly to keep sliding resistance low across thousands of moves
- Stack three modules side by side to cover large print beds or router tables without extra framing

✝️
