Precision Mini Linear Slide Actuator With Lead Screw Stepper Motor And Planetary Reducer For Smooth Steel Rail Motion Zero Wobble Rock Solid Build Tight Tolerance Compact Frame

Compact Mini Linear Stage Actuator With Lead Screw Motor
✔️ 5-9v dc motor, steel rail guide, planetary gear, single unit

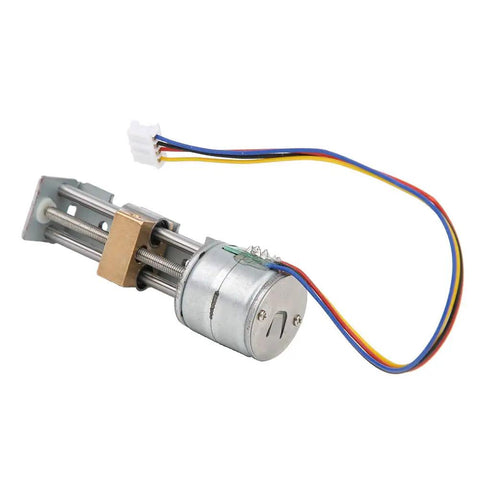

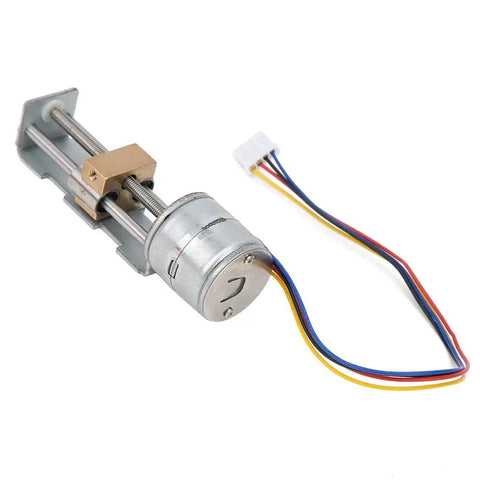

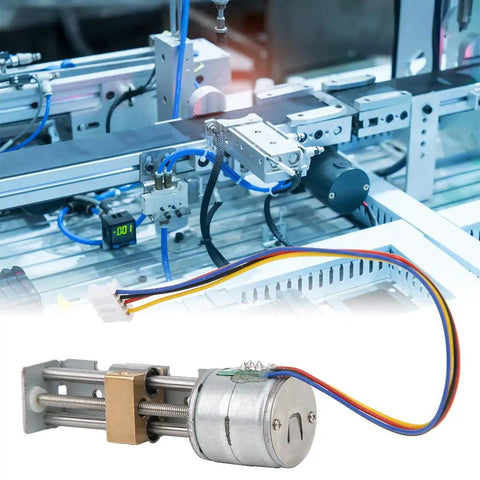

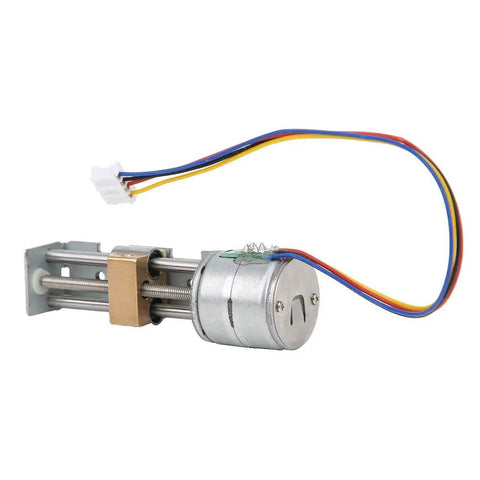

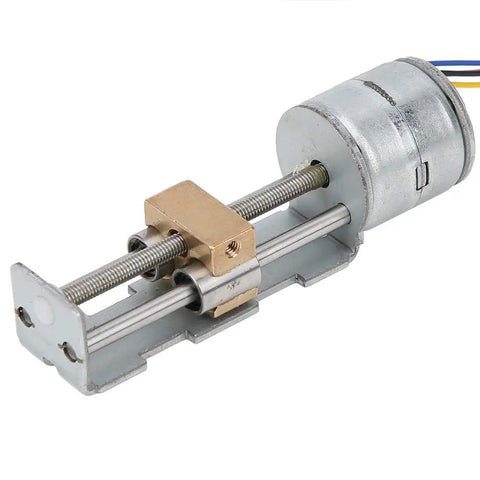

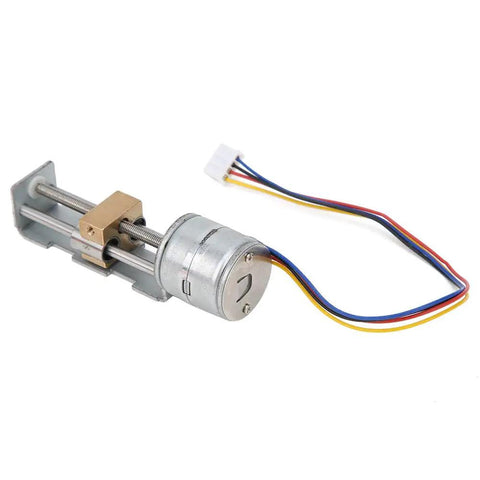

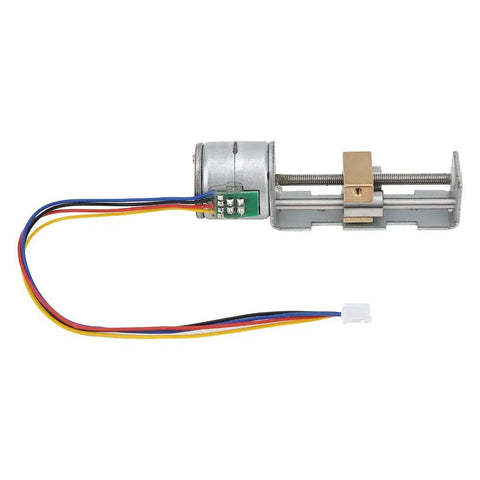

This mini linear stage actuator pairs a direct-drive stepper motor with a planetary reduction gearbox to deliver steady, repeatable push-and-pull movement along a hardened steel guide rail. You will typically mount it inside automated test rigs, precision measuring jigs, and compact printer mechanisms where silent position control matters. The all-metal motor housing and crimson copper windings keep resistance low while managing heat during extended duty cycles. Running on a simple 5 to 9 volt supply draws roughly 200 to 600 milliamps, making it easy to power from Arduino boards or basic driver chips.

✅ Sealed steel linear rail for smooth travel with minimal friction
✅ Integrated planetary reducer that boosts torque while cutting speed
✅ 5 to 9 volt DC input rated at 200 to 600 milliamp draw
✅ Compact metal frame designed for tight workspace integration

💡 What features should you look for when buying a mini linear stage actuator for precise positioning? This handy component works best when the drive train balances smooth glide with solid holding force under load. - Look for a planetary gearbox design that multiplies stepper torque without adding dead space to your enclosure - Verify the rail surface is hardened steel with close tolerances to eliminate lateral play during rapid moves - Check that the winding gauge supports steady current delivery without overheating during long batch runs - Confirm the voltage rating matches your existing controller so you can plug in the driver board straight away

✝️
