Precision Guitar Battery Box Routing Template For Single Compartment Cavity Layout Kills It Every Time For Luthiers And Makes The Whole Instrument Build Process Smooth Sailing From Start To Finish
✔️ Laser etched layout lines mark exact depth measurements

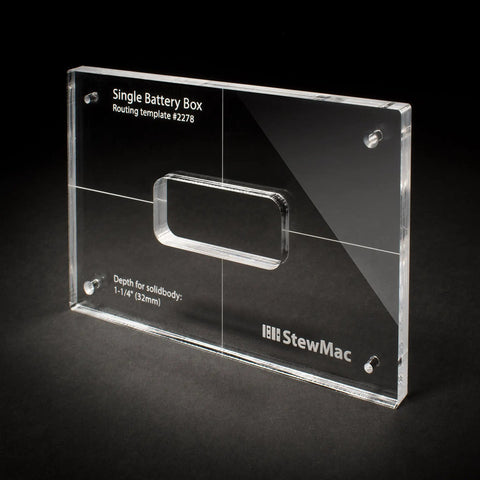

This single piece routing template helps workshop techs cut clean electric guitar battery compartments quickly. Made from tough clear acrylic, it keeps sightlines unobstructed while you trace your body outline and align center marks. Just tape it down, route shallow passes, and drop out perfectly shaped cavities for easy wiring jobs on stage rigs.
✅ Outer boundary measures 5.75 by 3.75 inches (149 by 98 mm)✅ Material thickness sits at 3/8 inch (9.5 mm)
✅ Transparent sheeting tracks penciled center marks easily
✅ Milled counter bores fit flat head fasteners securely
💡 How do luthiers guarantee precise cavity cuts without wasting valuable tonewood stock?
Makers reach for dedicated routing stencils to streamline string setup workflows and keep hardware seated tight.
- Align stamped cross lines with your pencil layout marks before securing the pad with double sided adhesive
- Guide a ball bearing cutter through several shallow passes until the cutter spins freely against the wall
- Drop the plunge depth to the engraved measurement so wiring harnesses tuck neatly inside the housing
- Skip extra measuring steps entirely since this handy little grid handles placement math automatically
