Precision CNC Ballscrew And Linear Guideway Kit Featuring HGH25 Rails SFU2505 Screw Heavy Duty Mount For Nema 34 Steppers And Knockout Smooth Build For Any Garage Shop
✔️ SFU2505 screw with 25mm shaft, 2600mm rail run, HGH25 slides

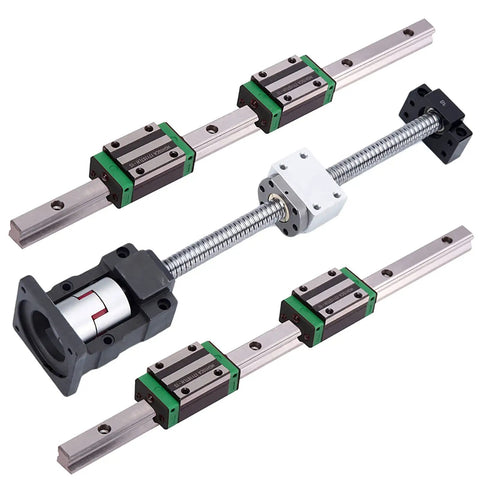

This heavy duty CNC ballscrew and rail assembly delivers steady linear positioning for DIY routers, laser engravers, and custom machine frames. It swaps out basic threaded rods for a sealed drive system that handles continuous cutting jobs in home garages. The complete package bundles the 25mm (0.98 inch) drive screw with matching support blocks so builders can skip expensive sourcing trips and jump straight to frame assembly.

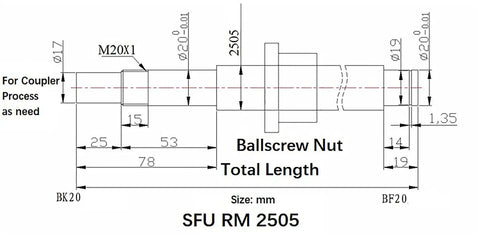

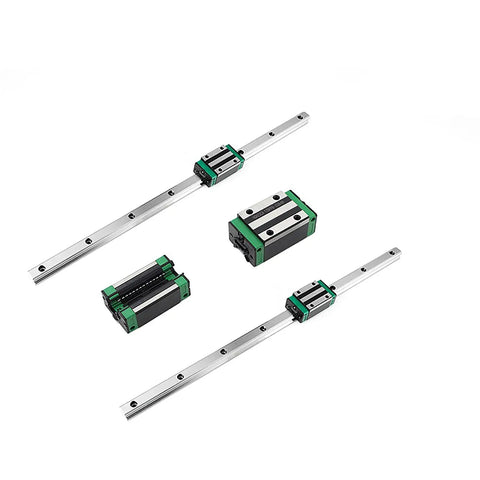

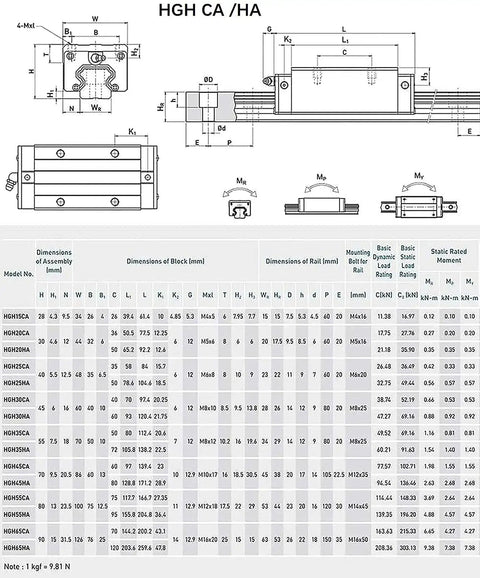

✅ SFU2505 rolled thread track offers 25mm (0.98 inch) outer diameter and 5mm (0.20 inch) pitch across 102.36 inch (2600mm spans✅ Dual HGH25 square guide tubes pair with four HGH25 CA carriage blocks for even weight distribution

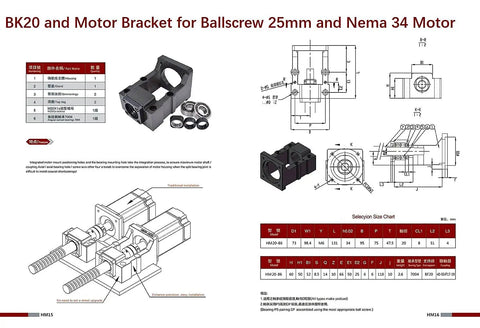

✅ Combined BK20 (20mm/0.79 inch) end mount holds a deep groove bearing and acts as a direct Nema 34 adapter
✅ Flexible shaft connector takes standard 14mm (0.55 inch) motor pins so power transfers smoothly without lateral stress
💡 How do you keep axis tracking tight and avoid mechanical lag during heavy cross cutting? Dropping a proper ballscrew kit into your setup makes framing a lot more handy because the drive components lock together without any slop. The matched hardware distributes weight evenly and kills chatter before you ever run a test path. - Hardened inner raceways spin freely so the motor does not burn out fighting drag during rapid zips - Square profile channels slide right over polished tracks so your gantry stays square under heavy push force - Factory matched adapters cuts assembly time so you spend less time wrestling with shims
✝️
