Precision Aluminum Extrusion Drill Jig With Dead On Vertical Alignment Multi Size Snap Fit Saves Serious Shop Time Zero Guess Hole Placement For T Slot Profiles Go To Workshop Guide Fixture For Fast Accurate Results
✔️ Supports 20 30 40 t slots with m6 m8 threading for rapid builds

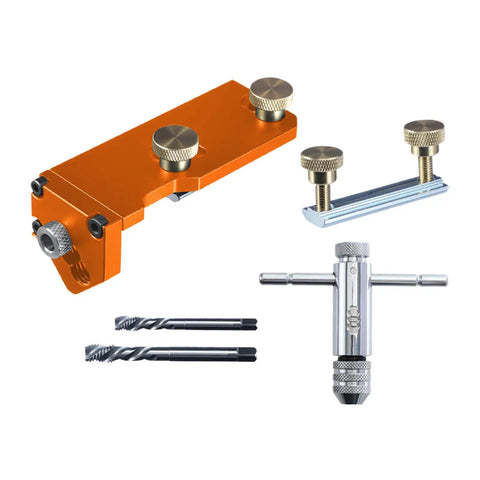

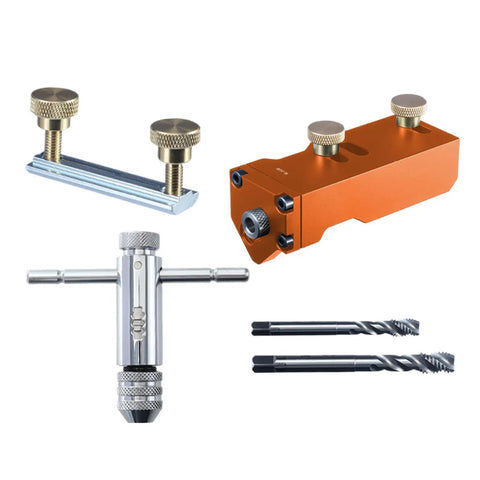

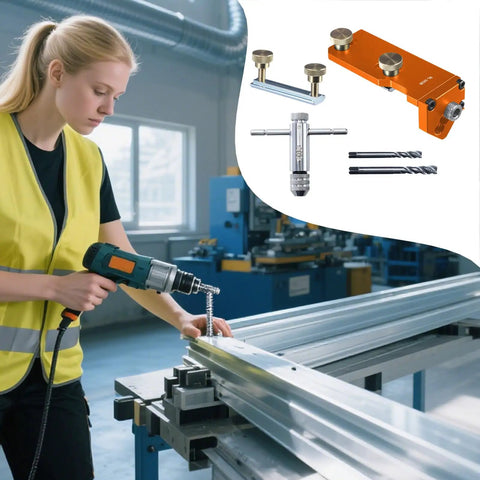

This precision aluminum extrusion drill jig streamlines workshop tasks by locking dead vertical alignment when routing threaded holes in t groove stock. It works perfectly for assembling custom workstations, building industrial framing, and attaching hardware without shifting or guessing angles. The single set orange alloy design snaps onto twenty thirty and forty series profiles to clamp securely while the brass guide sleeves protect your bits from wear during heavy shop use.

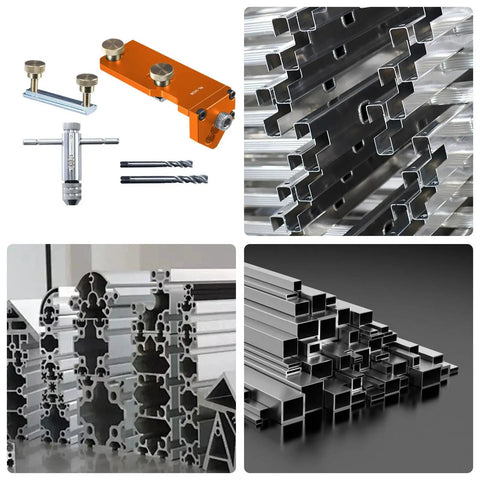

✅ Aluminum alloy frame with brass guide sleeves reduces tool friction✅ Compatible with 20 30 and 40 millimeter t slot configurations
✅ Handles m6 and m8 tapping threads for consistent bolt seating

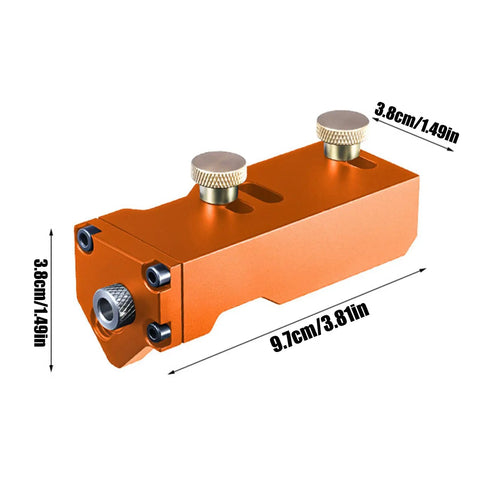

✅ Weighs approximately 430 grams for stable bench top handling

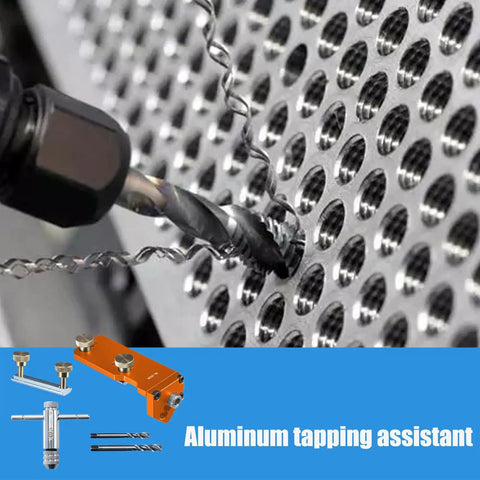

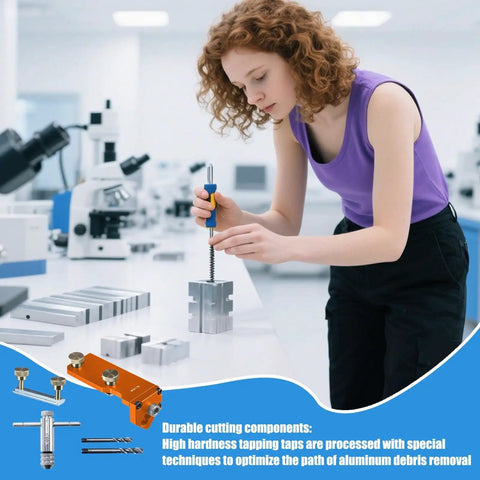

💡 How does a dedicated tap guide improve accuracy when working with aluminum t profiles - Operators use steady alignment fixtures to eliminate guesswork and keep mounting holes square under heavy loads. - The handy aluminum body locks dead vertical positioning so you route clean m6 or m8 channels without wobble. - Brass liner tubes trap cutting debris and shield expensive drill bits during extended fabrication sessions. - Snaps directly onto twenty thirty and forty rail geometries and cuts setup clutter out of busy shop benches.
✝️
