Precise Manual Goniometer Stage 65x65mm With Optical Positioning Sliding Table Plus Minus 10 Degree Tilt Dovetail Platform Indexing Table A Real Workhorse For High Precision Micropositioning And Angle Adjustment
✔️ 65x65mm dovetail platform, 10° tilt, 8kg load capacity
Compact, robust manual goniometer stage for precise angular positioning used in optical setups. Its anodized aluminum body minimizes light reflection, while the extended handwheel makes fine adjustment a breeze in labs or on production benches.

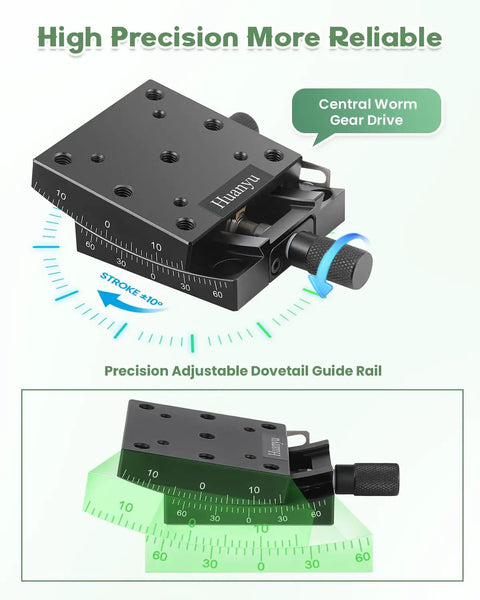

✅ Central worm gear drive and precision dovetail guide rail for smooth, stable motion

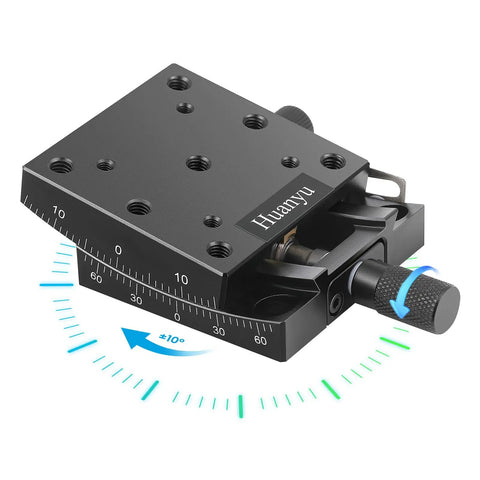

✅ 10° tilt range with accurate indexing for repeatable angles

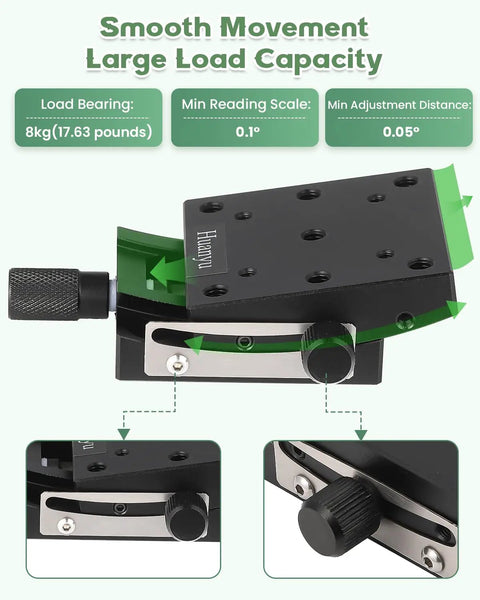

✅ Load bearing 8 kg (17.63 lb) to securely hold fixtures and optics
✅ Min reading scale 0.1° and min adjustment distance 0.05° for fine control

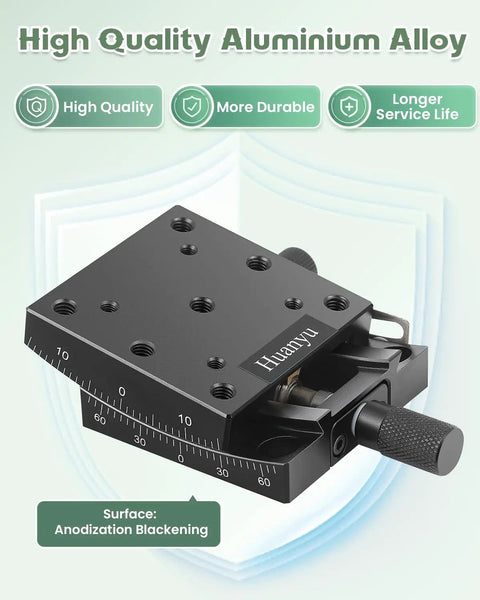

✅ Aluminum alloy body with black anodized finish to cut reflections in optical setups

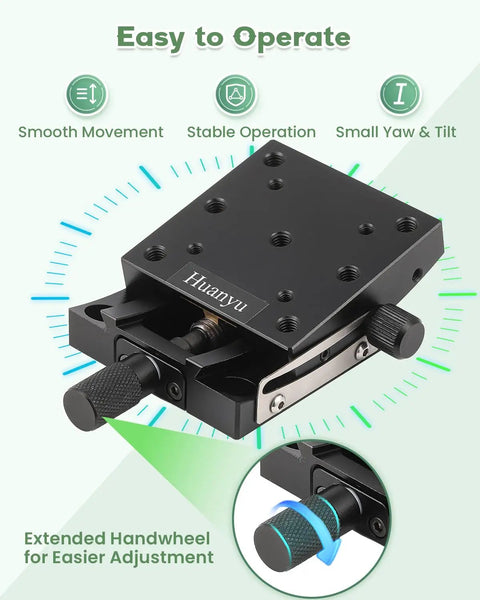

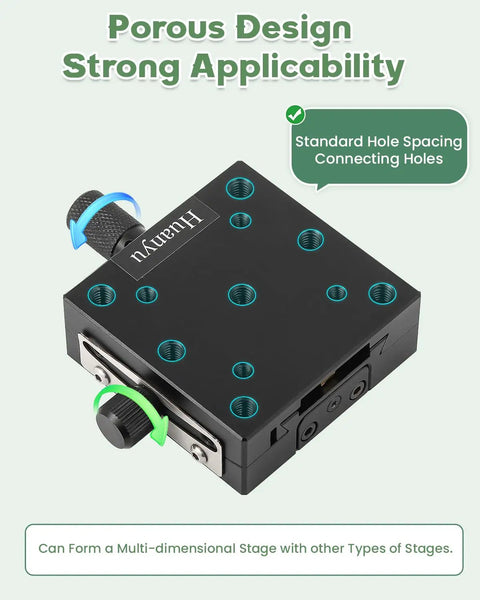

✅ Extended handwheel and modular hole-spacing for multi-dimensional stage combos
💡 What is a goniometer stage used for in precision optics and micromanipulation?
It's handy for accurate angular control and fine positioning in lab setups.
- precise angular control with a compact linear slide unit for delicate alignment
- compatible with sealed ball bearing guides and ceramic components for longevity
- supports fiber coupling and waveguide alignment on optical benches
