Powerful 12V DC linear actuator with a 4 inch stroke and 660 lb thrust delivers precise push pull and lift for heavy loads in rugged outdoor or workshop settings, IP65 rated with mounting brackets and corrosion resistant aluminum housing
✔️ 660 lbs max thrust, 4 in stroke, 13 in extended, IP65 brackets
This heavy-duty 12V DC linear actuator is built to push, pull, or lift heavy loads with precision. It features corrosion-resistant aluminum alloy housing, a black powder-coated surface for added corrosion resistance, and a built-in limit switch for automatic stop at both ends. With IP65 waterproof rating, it’s suitable for indoor and outdoor use in industrial lifting systems, door openers, electric beds, sofas, sunroofs, solar trackers, and marine or RV equipment.

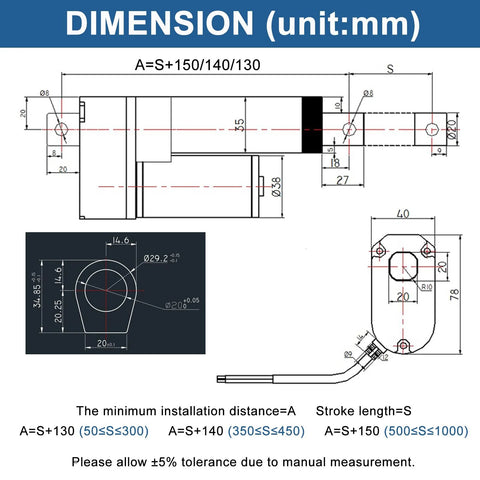

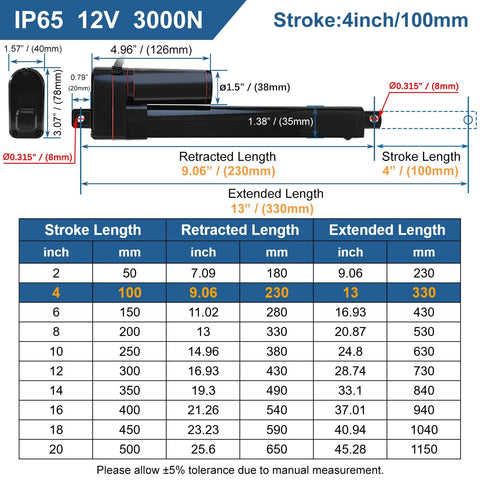

✅ Stroke length 4 in (100 mm); Retracted 9.06 in (230 mm); Extended 13 in (330 mm)✅ Max thrust 660 lbs (3000 N); max pull 440 lbs; duty cycle 10%
✅ No-load speed 0.2 in/s (5 mm/s); current draw up to 5 A; power 40-50 W

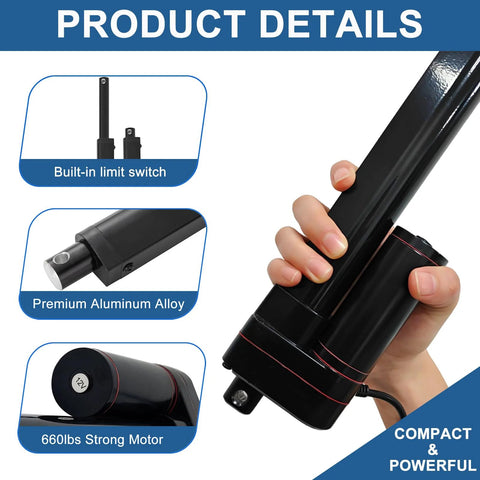

✅ Aluminum alloy body with black powder coating for corrosion resistance and heat dissipation

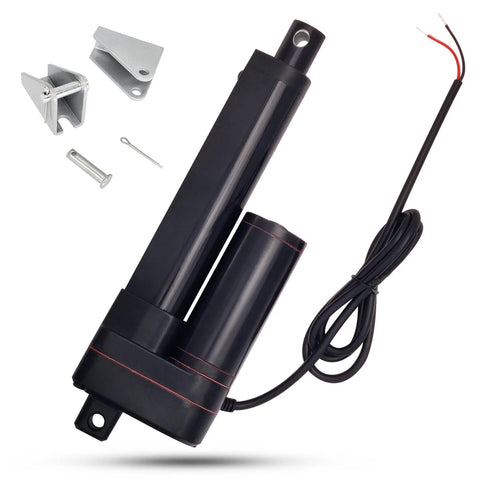

✅ Included mounting brackets; built-in limit switches for auto stop and self-locking in any position
💡 What is a heavy-duty 12V linear actuator used for in industrial and home setups? This handy device moves heavy loads with controlled precision and is built for tough environments. - how to choose a heavy-duty 12V linear actuator for lifting doors, beds, solar trackers - IP65 rating, limit switches, and mounting hardware for reliability - setup tips for safe use: 12V power supply compatibility and optional remote control
