POS3L Male Rod End 3mm Left Hand Joint - Miniature

Regular price $14.99 Sale price$20.00you save $5.01
SKU: POS-3L
UPC: 00193019056806
Item: POS3L Male 3mm Left Hand Miniature Rod End
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Basic Dynamic Load Rating: 4170 KGF
Basic Static Load Rating: 190 KGF

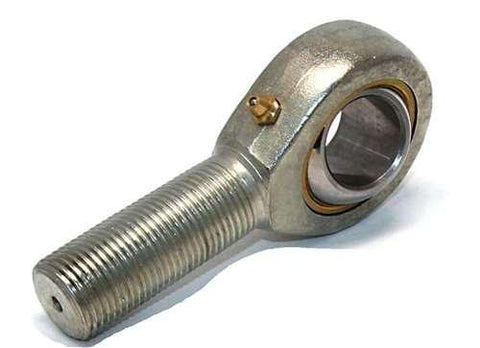

POS-3L Miniature Male Rod End - Left Hand
✔️ 3mm Bore - M3x0.5 Thread, One Heim Joint

The POS-3L is a miniature male rod end designed for 3mm shafts with a left-hand thread. Compact and precise, this joint is perfect for small-scale linkages in robotics, RC builds, and precision mechanical systems. It features a high-strength spherical bearing and is interchangeable with IKO POS 3.

✅ Inner diameter (bore): 3mm
✅ Thread type: M3 x 0.5 (Left Hand)
✅ Type: Heim joint rod end bearing
✅ Dynamic load rating: 170 KGF
✅ Static load rating: 190 KGF
✅ Interchangeable with: IKO POS 3
✅ Quantity: 1 bearing

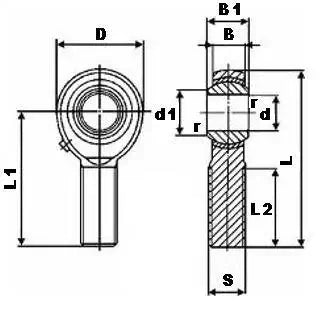

📏 Dimensions Table (Metric):

Spec Value
d 3mm
Thread M3x0.5 LH
S 12mm
D 4.5mm
B 6mm
B1 9mm
d1 33mm
L 36mm
L1 27mm

💡 When should you use a left-hand rod end bearing?
Left-hand rod ends are used when you need opposite-threaded ends for fine-tuning linkage tension or rotational control without disassembly - ideal for adjustable or precision setups.

Perfect for tight mechanical spaces where smooth articulation and compact control matter.
