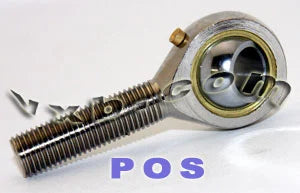

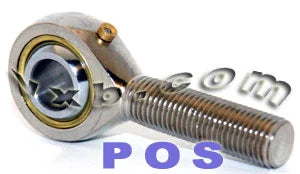

POS16 Male Rod End 16mm Right Hand Heim Joint

POS16 Male Rod End Bearing
✔️ Right Hand Thread - 16mm Bore

The POS16 male rod end is designed for use with 16mm shafts, built with a right-hand M16x2 thread. This rod end (also called a heim joint) is widely used in control linkages, steering systems, and machinery requiring flexible movement with high load capacity.

✅ Type: Rod end bearing (heim joint)
✅ Model: POS16
✅ Thread: Right hand, M16x2
✅ Inner diameter (bore): 16mm

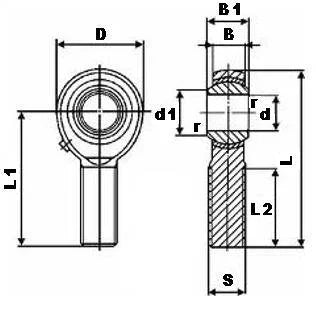

✅ Outer diameter (head): 38mm
✅ Width B: 15mm
✅ Width B1: 21mm
✅ Ball diameter (d1): 19.4mm
✅ Length (L): 85mm
✅ Shank length (L1): 66mm
✅ Base to center (L2): 40mm
✅ Dynamic load rating: 2,140 kgf
✅ Static load rating: 2,590 kgf
✅ Quantity: 1 bearing

☑️ Cross Reference Equivalents

• IKO: POS 16

• ELGES: GAKFR 16 PB

• Equal: SAKAC 16 M

• HIRSCHMANN: SM 16

💡 Why use male rod end bearings?
Because they provide smooth movement and strength in mechanical linkages.

• Handle misalignment and pivot motion with ease

• Right-hand thread makes installation straightforward

• Commonly used in steering, suspension, and automation systems

If you need a heavy-duty rod end for precise movement, the POS16 right-hand bearing is a tough and reliable option.
