Portable Handheld Vibration Meter With LCD Display And Split Measurement, Digital Vibration Tester For Motors, Fans, Bearings And Mechanical Watches, Includes S And L Probes, Compact Vibe Analyzer For Quick Diagnostics And Accurate Readouts

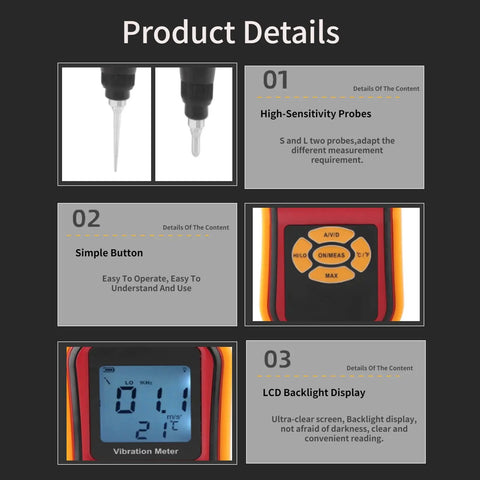

✔️ Compact 2-probe design with S & L sensors for quick reads
The Portable Handheld Vibration Meter is a compact diagnostic tool that uses split measurement to keep the display and probes separate, improving data capture during testing. It’s commonly used on motors, fans, bearings, and mechanical watches for quick condition checks in maintenance setups.
✅ Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)✅ Measurement range of acceleration: 0.1-199.9m/s
✅ Measurement range of velocity: 0.1-199.9mm/s rms
✅ Measurement range of displacement: 0.001~1.999mm p-p
✅ Measurement accuracy: ±5%±2digits
✅ Measurement frequency range of acceleration: 10Hz-1KHz (LO) 1KHz-15KHz (HI)
✅ Measurement frequency range of velocity: 10Hz-1KHz (LO)
✅ Measurement frequency range of displacement: 10Hz-1KHz (LO)
✅ Displays update cycle: 1 second
✅ LCD display: 3 1/2 digits display
✅ Single output: AC output 2 V peak (display full scale)
✅ Load impedance: 10KΩ or more
✅ Power supply: 9V battery (not included)
✅ Stand-by current: ≤15uA
✅ Operating current: ≤25mA
✅ Battery life: 20 H continuous use
✅ Auto power-off function: Turns off automatically after 60 seconds
✅ LCD backlight function: 7 seconds
✅ Operating temperature range: 0-40℃
✅ Operating humidity range: 30-90%RH
✅ Low battery indication: 6.4V±0.2V
✅ Temperature range: -10℃-80℃
✅ Temperature accuracy: ±2℃
✅ Weight: Approx. 1104g / 38.9oz

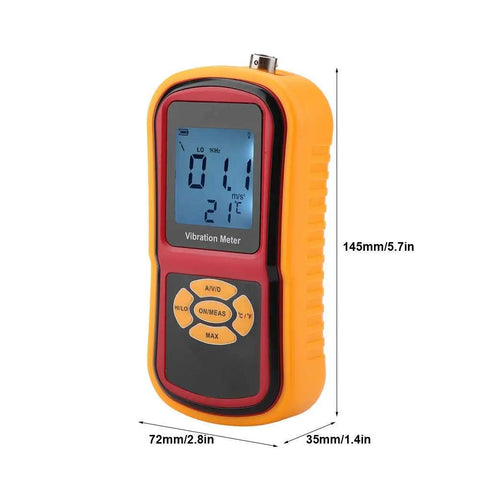

✅ Size: Approx. 72 * 35 * 145mm / 2.8 * 1.4 * 5.7in

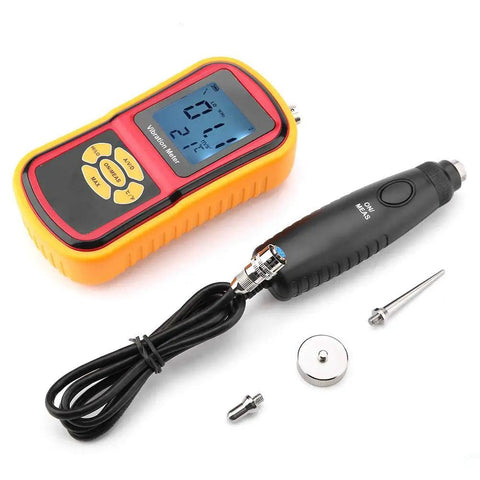

✅ Package List: 1 Set of Vibration Meter 1 * Box
💡 What is a handheld vibration meter used for in machine maintenance and diagnostics? This handy device helps technicians diagnose faults by reading vibration metrics in motors, bearings, and watches. It enables quick data capture in the field. - Measures acceleration, velocity, and displacement for condition monitoring - Works with split measurement to record data while monitoring - Includes S and L probes for flexible setup in tight spaces - Displays results clearly on an LCD for fast decisions
✝️
