Pool Heat Exchanger 200 KBtu Per Hour 304 Stainless Steel Shell Tube Heat Recovery For Solar Heating Hydraulic Heating Oil Cooling And Snow Melting With Same Side Port 1.5 Inch FPT

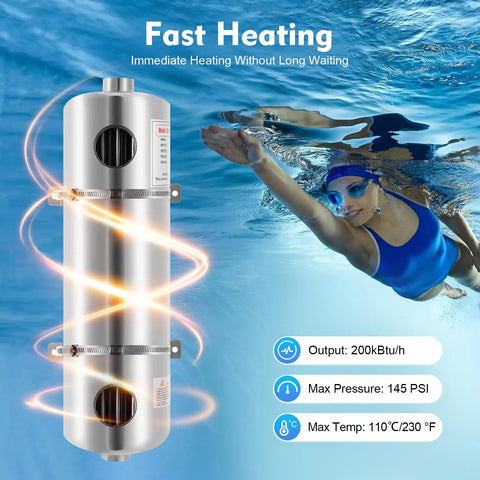

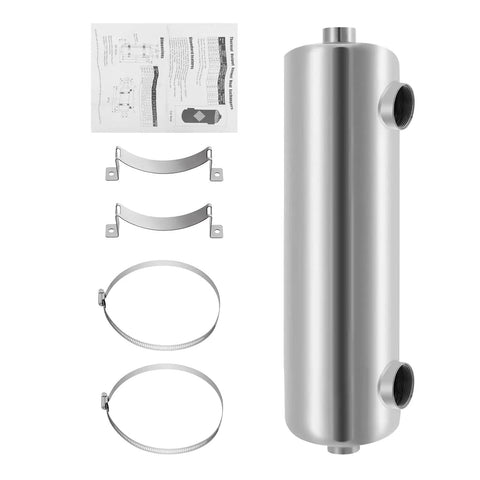

✔️ 200 kBtu/h output, 304 SS shell, 1.5 in FPT; includes 2 brackets
This 304 stainless steel shell-and-tube heat exchanger transfers heat between hot water or steam circuits and pool or spa water. It's ideal for solar heating, hydraulic heating, oil cooling, and snow-melting applications, delivering quick, dependable heat transfer for pools, hot tubs, and spas.
✅ Material: 304 stainless steel shell and tubes for rust resistance✅ Output: 200 kBtu/h heat transfer capacity

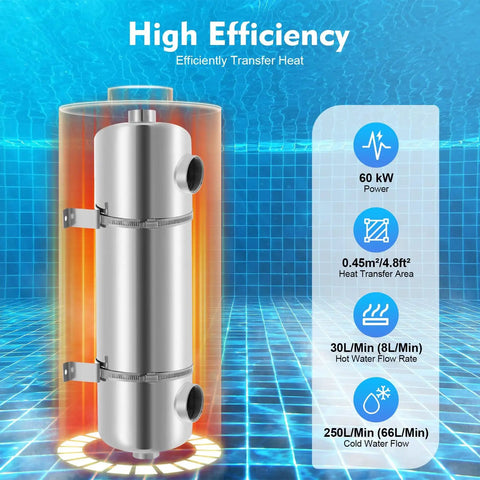

✅ Heat transfer area: 0.45 m² / 4.8 ft²
✅ Hot water flow: 30 L/min; Cold water flow: 250 L/min

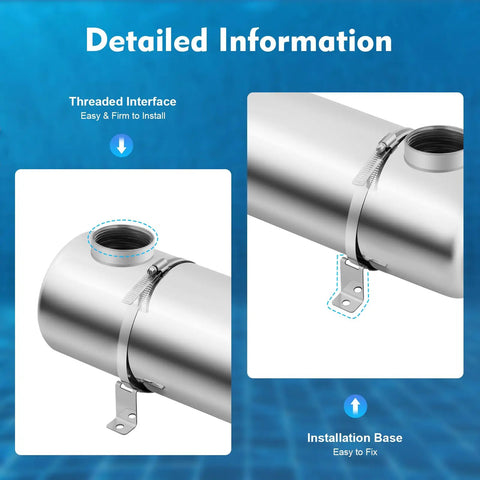

✅ Ports: hot water side 1 in FPT, same-side port 1.5 in FPT
✅ Packing size: 540 mm x 190 mm x 190 mm (21.26 in x 7.48 in x 7.48 in)

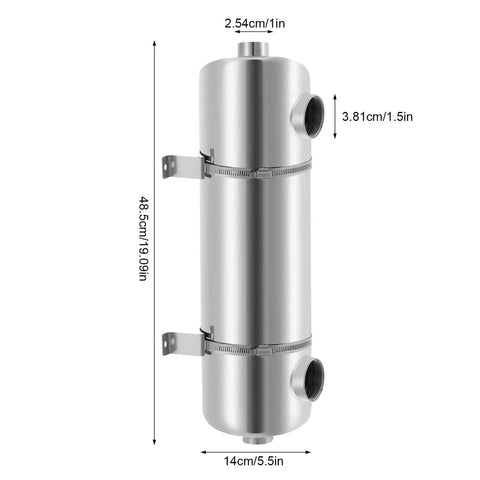

✅ Product size: 485 mm x 140 mm (19.09 in x 5.5 in)
✅ Weight: 5.2 kg (11.5 lb); Connection ports: 1.5 in and 1 in

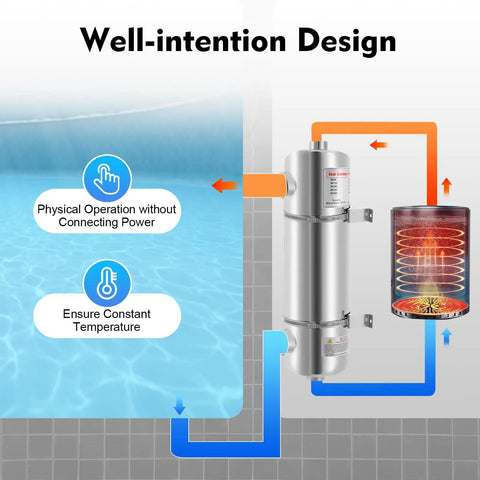

💡 What is a pool heat exchanger used for and how does it work? This handy device transfers heat from a hot loop to pool water, warming it efficiently without mixing fluids.
- Handy for solar heating, spa temperature control, and hydronic cooling systems.

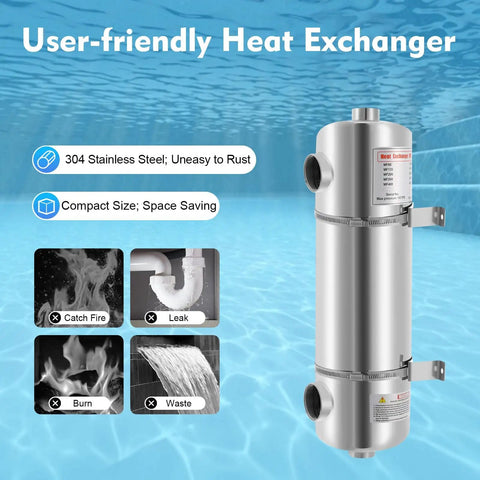

- The 304 stainless steel shell resists rust and corrosion in chlorine or saltwater environments.
- Heat transfer happens through a shell-and-tube design for reliable performance.
- Proper sizing and installation ensure safe, leak-free operation.
