Pneumatic Hands-On Lever Valve With Rotary Positioner For Manual Control, Three Position Four Way Valve With Quarter Inch Ports, Mid Closed Logic, Ideal For Precise Cylinder And Actuator Movement

Manual Rotary Lever, 1-Pack for 3-Position 4-Way Control
✔️ Manual Rotary Lever, 1-Pack for 3-Position 4-Way Control

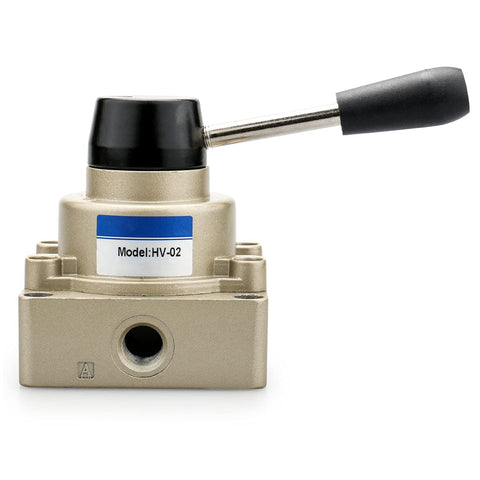

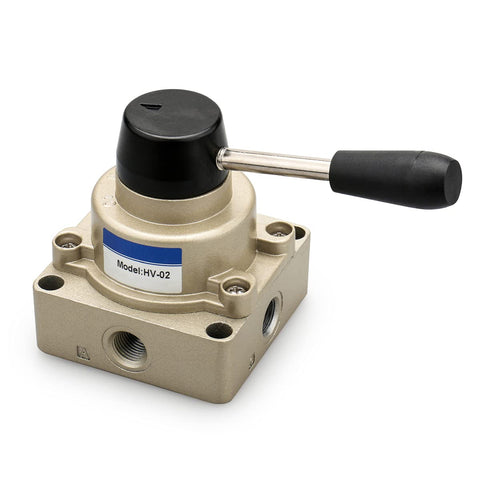

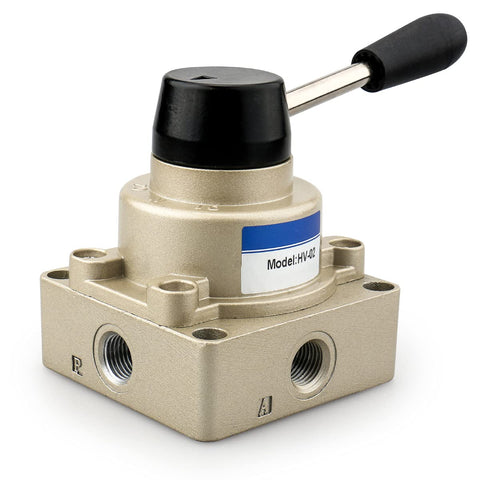

The HV-02 rotary hand lever valve is a professional-grade manual positioner for pneumatic systems. It's designed to give precise control over cylinders in automated lines, CNC setups, and portable equipment where hands-on adjustment is needed.

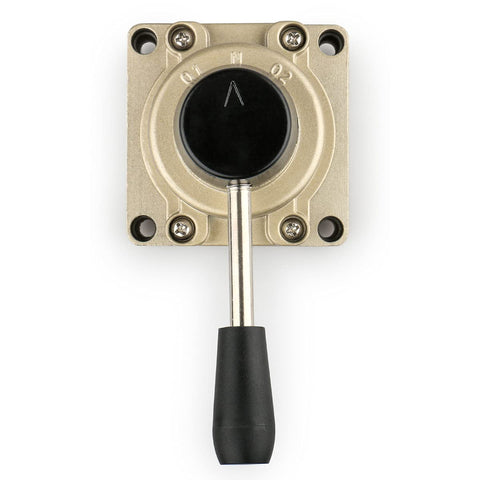

✅ 4/3 mid-closed logic for safe hold and precise stopping

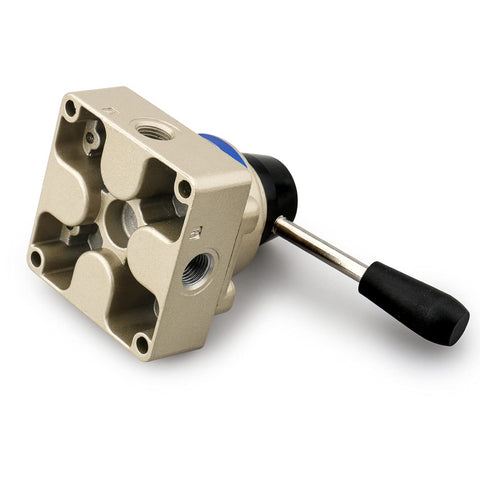

✅ PT 1/4 in port size (Input P, Outputs A/B, Exhaust R)
✅ CV 0.89 and 16 mm² effective area for strong flow
✅ Operating pressure 0-10 bar (0-145 psi)
✅ Operating temp 5-60°C
✅ Heavy-duty metal housing; weight 454 g

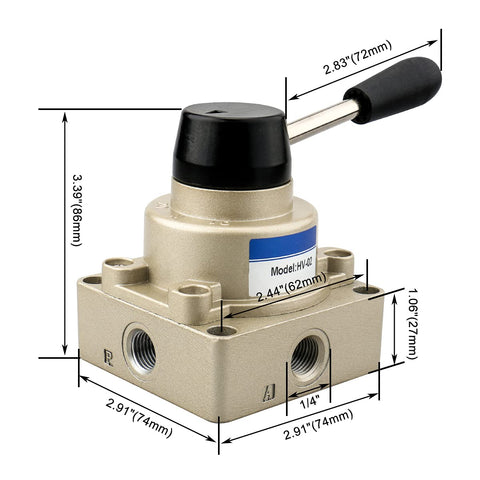

✅ Compact 62x62x73 mm footprint
✅ Includes 1 x HV-02 hand lever valve

Parameter	Value
Footprint	62×62×73 mm (2.44×2.44×2.87 in)
Port size	PT 1/4" input P; Output A/B; Exhaust R
Effective area / CV	16 mm² / CV 0.89
Operating pressure	0-10 bar (0-145 psi)
Operating temp	5-60°C
Weight	454 g

💡 What is a hand lever valve used for in pneumatic systems?

This handy control lets you manually route compressed air to cylinders and actuators.

- precise manual control of actuator position in CNC lines - handy override for debugging and manual operation on machines - supports 1/4 in ports and mid-closed 4/3 logic
