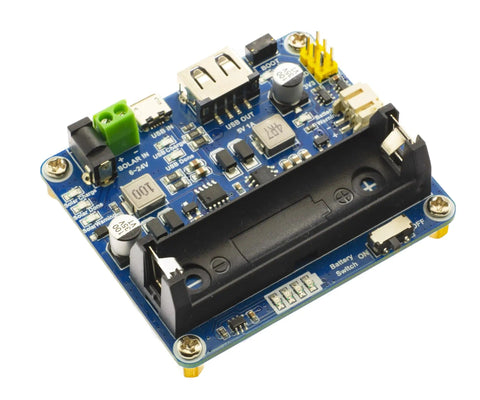

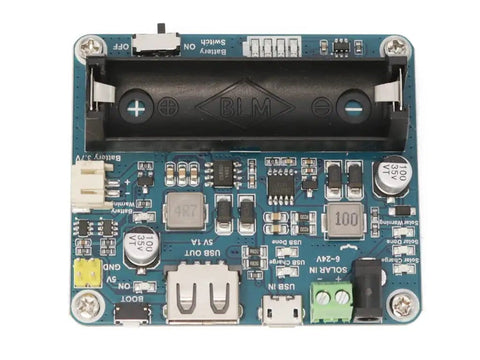

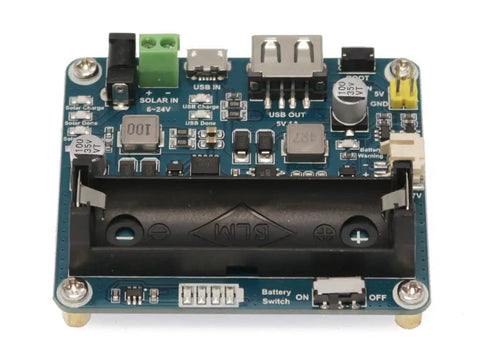

Plug And Play Solar Power Management Module For 6 Volt To 24 Volt Panels With MPPT Battery Charging USB And Pinheader Outputs DC 002 Jack Or Screw Terminal Input Onboard Power Switch For Efficient Solar Power
✔️ MPPT module with USB + pinheader outputs, single unit
This compact module uses Maximum Power Point Tracking to extract maximum energy from 6-24V solar panels and can charge batteries via USB or screw-terminal input. It’s a handy solution for small solar projects, IoT devices, and field installations.
✅ MPPT function maximizes panel energy capture
✅ Supports solar panel / USB charging
✅ Input: 6V-24V via DC-002 jack or screw terminal

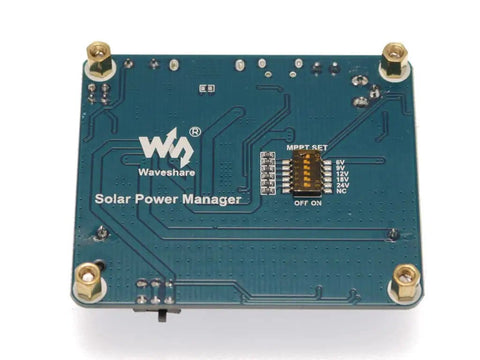

✅ Onboard MPPT SET switch to optimize charging
✅ Two 5V outputs: pinheaders and USB
✅ Onboard high-capacity capacitors reduce ripple for stable operation
✅ 14500 battery holder and PH2.0 connector for 3.7V Li batteries
✅ LED indicators monitor solar and battery status
✅ Multi-protection: overcharge, overdischarge, reverse, overheat, overcurrent
✅ Solar input 6-24V; USB 5V; USB OUT 5V 1A; charging cutoff 4.2V ±1%

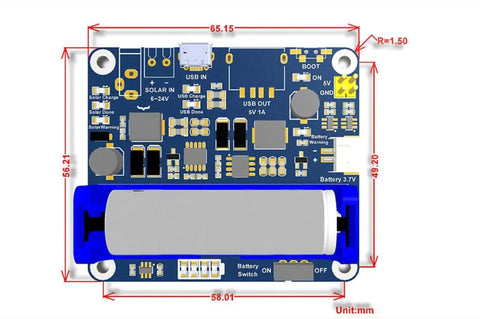

✅ Operating temp -40 to 85 C; dims 65.2mm × 56.2mm × 22.9mm
💡 What is a solar power management module with MPPT used for? This handy device helps you maximize energy from solar panels and safely charge batteries. - Handy for small solar projects like sensors and remote devices - Great for IoT hubs and field installations needing reliable power - Simplifies wiring with USB and pinheader outputs while including protection
