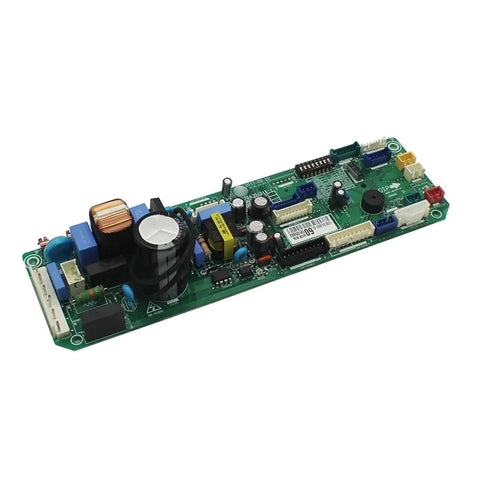

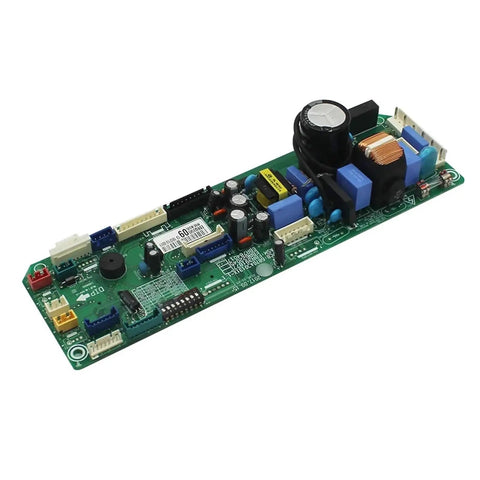

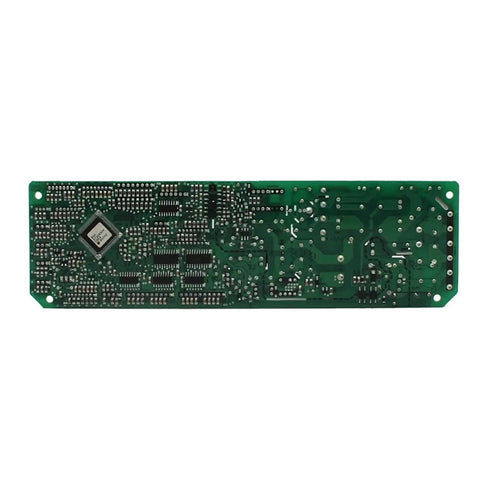

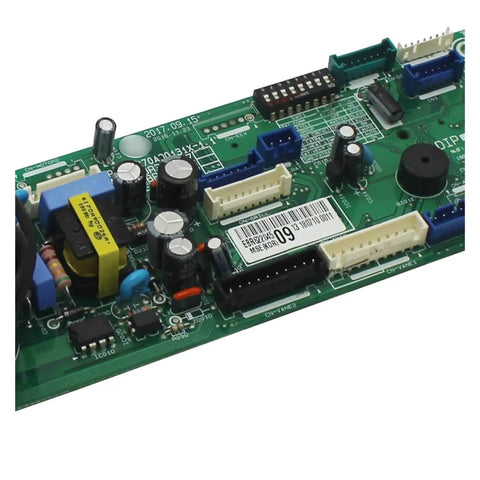

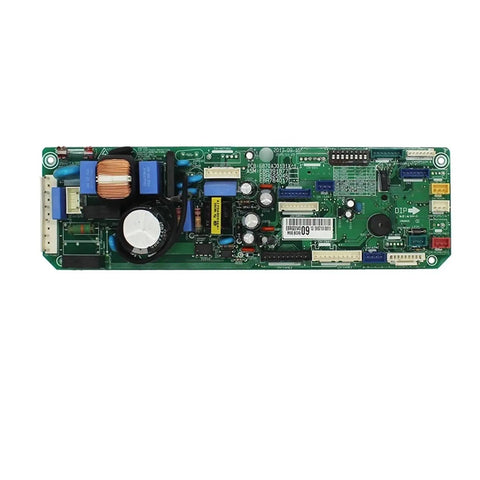

Plug And Play Direct Swap PCB Assembly Replacement For LG Heat Pump Indoor Units EBR62204509 6870A00131X-1.1 Solid Fit HVAC Control Board Zero Soldering Hassle

Direct Swap HVAC Control Board For LG Heat Pumps
✔️ Single unit EBR62204509 6870A00131X, 380V pcb assembly fits LG indoor

This plug and play replacement board swaps out failed HVAC main control units without messy wiring. It handles outdoor temperature fluctuations and compressor load management for residential climate systems. A handy upgrade for technicians skipping old soldered rigs.

✅ Compatible with LG models LCN097HV4 LMR185HV LCN247HV
✅ Features replaceable onboard fuse and compressor delay timer
✅ Reinforced silicone glue secures transformers against vibration drops
✅ Power tested relay switching and sensor input reading pre shipping

💡 How do i troubleshoot motor overload protection tripping on replacement boards?
- isolate the compressor relay contacts to prevent current surges from frying new circuits
- confirm wire harness pins seat fully into terminal blocks for steady signal transmission
- set thermostat differential correctly so the system respects minimum off cycle intervals

✝️
