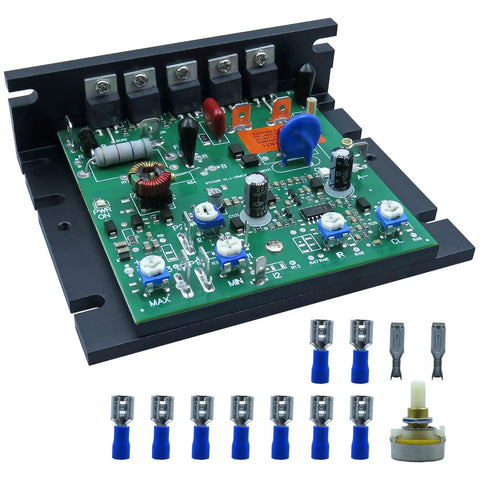

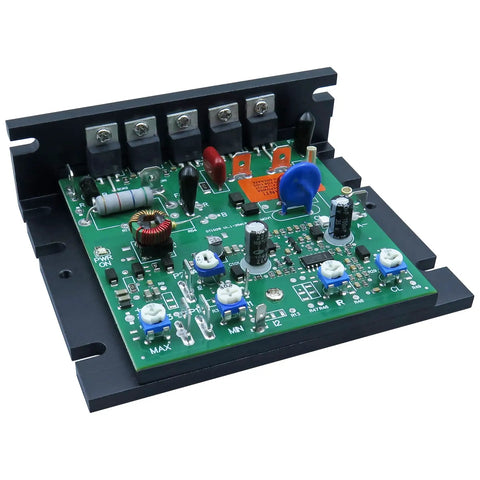

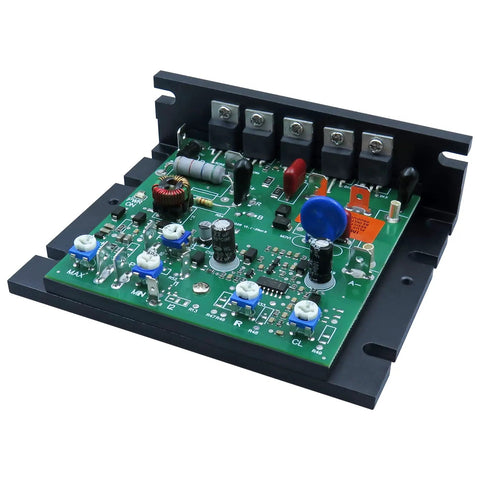

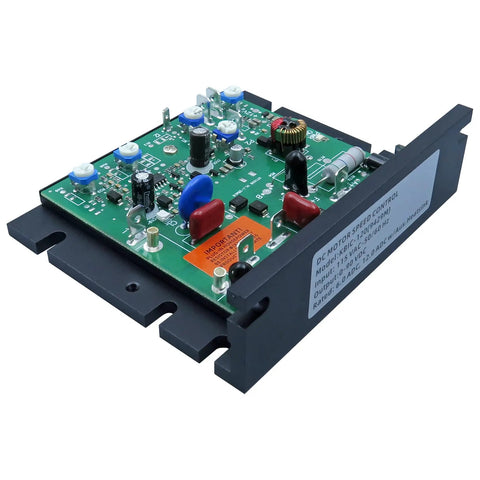

Plug And Play 120V DC Motor Speed Controller For SCR Drives Direct Replacement For KBIC120 Compatible With PM Shunt And Universal Motors Easy Install Drive Chassis Upgrade

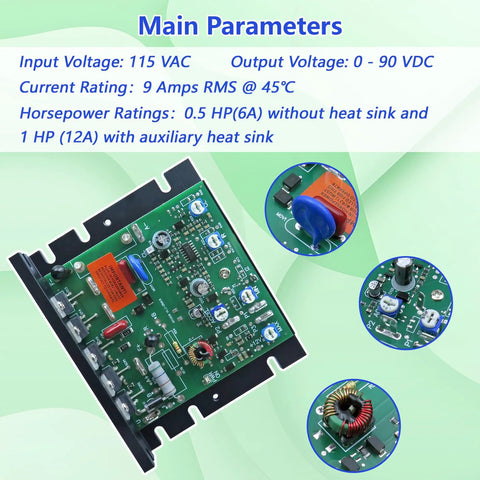

This plug-and-play drive chassis is a DC motor speed controller designed to retrofit KBIC-120 systems. It supports 90 VDC PM, shunt, and universal motors and is commonly used in industrial equipment, conveyors, CNC machines, fans, and pumps. The unit runs on 115 VAC input and delivers a 0-90 VDC output with a robust 9 A RMS rating at 45°C.
✅ Input Voltage: 115 VAC
✅ Output Voltage: 0-90 VDC
✅ Rated Current: 9 Amps RMS @ 45°C

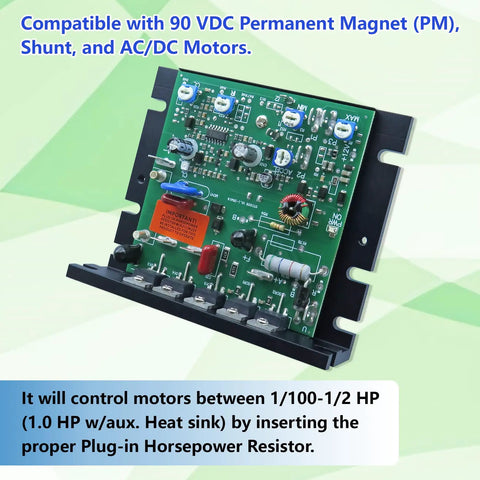

✅ Motor compatibility: 90 VDC PM, Shunt, and Universal AC/DC motors
✅ HP range: 0.5 HP (6 A) base; up to 1.0 HP with optional heatsink

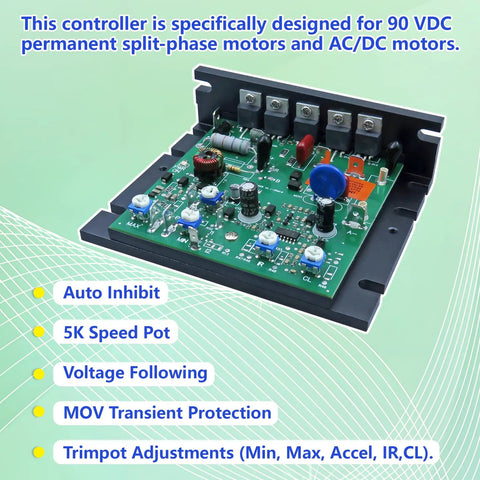

✅ Features: Auto Inhibit, Voltage Following, MOV protection, 5K speed pot, min/max/acceleration/IR/current trim pots
✅ Safety: External line fuse and armature fuse required
✅ Applications: Industrial machinery, conveyors, CNC equipment, DIY projects
💡 What is a KBIC-120 compatible SCR DC motor speed controller used for in industrial drives?
A handy device for controlling 90VDC motors across a range of equipment. It lets you dial in speed, ramp, and protection settings for reliable operation.
- Regulates PM, shunt, and universal motors in conveyors, CNCs, fans, and pumps

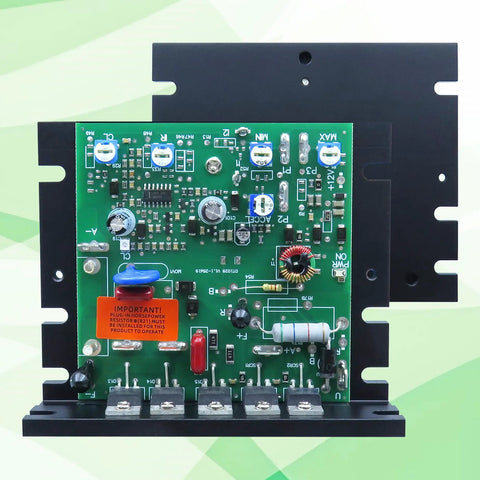

- Adjusts Min/Max speed, acceleration, IR compensation, and current limit
- Includes MOV transient suppression with required external fuses for safety
- Designed as a direct retrofit for KBIC-120 drive chassis
