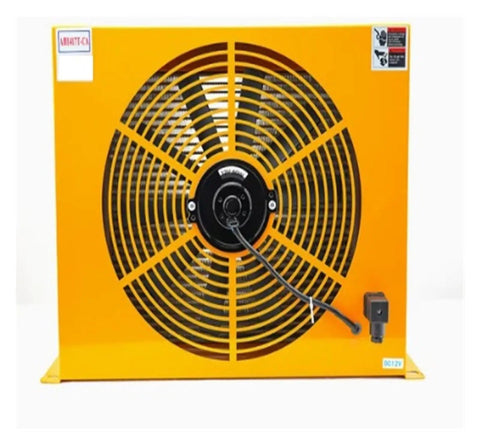

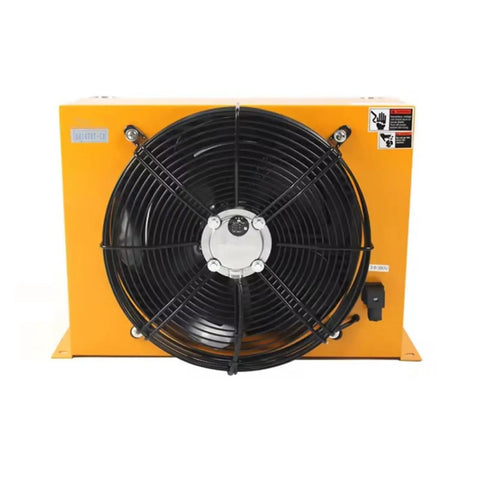

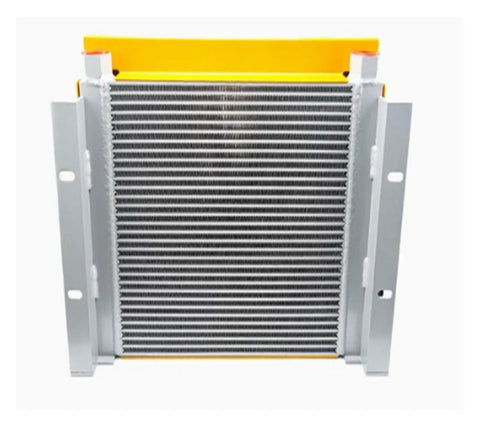

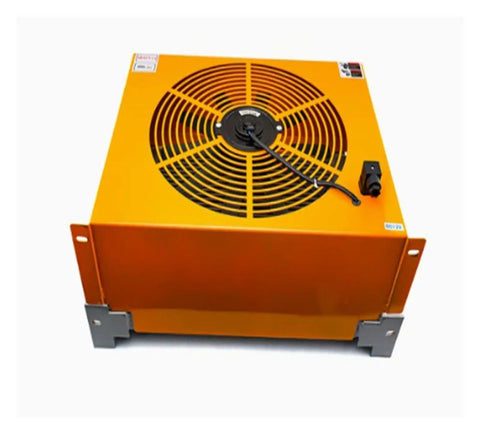

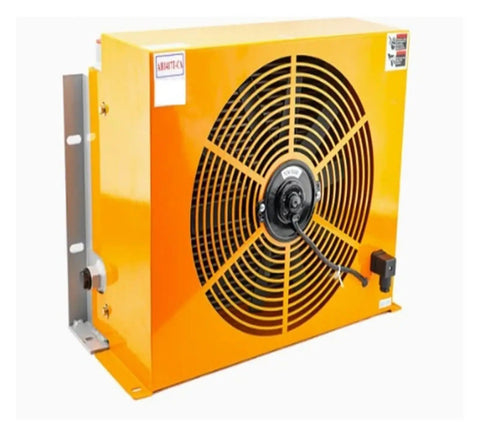

Plate Fin Heat Exchanger Fan For Hydraulic Press Machine 150 L Per Minute Air Cooled Oil Radiator Cooler Rapid Temperature Drop Yellow 24 Volt Beast Mode Cooling
✔️ Single unit, 350mm dia, 2.0 MPa max pressure, 24V
Introducing the Plate Fin Heat Exchanger Fan, a high-capacity cooler designed for hydraulic press systems and other industrial oil cooling setups. It delivers efficient heat dissipation, robust pressure handling up to 2.0 MPa, and easy integration with G1 thread connections and a 350mm fan.
✅ Cooling capacity: 10000 Kcal/h
✅ Flow rate: 150 L/min
✅ Working pressure: Up to 2.0 MPa
✅ Exhaust air volume: 1810 m3/h
✅ Thread connection: G1"
✅ Fan diameter: 350 mm
✅ Color: Yellow
✅ Packing size: 58*48*30 cm
✅ Fan power: 4P-140W and 2P-230W
✅ Exterior cooling area: 6.2 m2
💡 What is a plate fin heat exchanger fan used for in hydraulic cooling systems?
This handy device helps keep hydraulic oil temperatures in check during heavy-duty operation.
- High cooling capacity with a plate-fin design for efficient heat transfer
- Suitable for hydraulic systems up to 2.0 MPa and compatible with G1 connections
- 350 mm diameter fan provides broad coverage for rapid temperature drop
- Flow rate of 150 L/min with exhaust of 1810 m3/h for fast cooling
