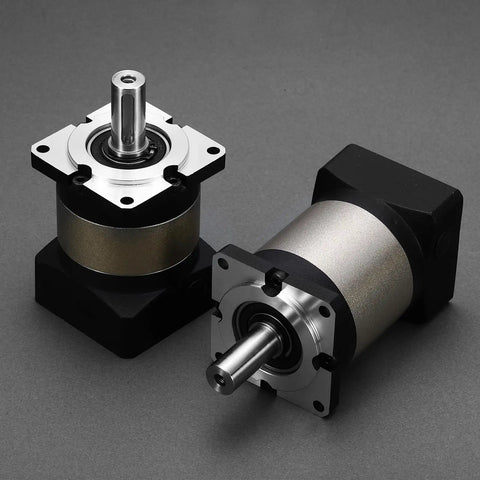

Planetary Gearbox Speed Reducer With 50 To 1 Reduction And Ultra Low Backlash Under Fifteen Arc Minutes 3000 RPM Max 14 Millimeter Input Bore And Output Shaft 60 By 130 Millimeter Frame Ideal For CNC Router And Heavy Duty Servo Systems

Pack: 50:1 Low-Backlash Planetary Gearbox for CNC Servos
✔️ 50:1 reduction, ≤15 arc-min backlash, 60x130 mm frame

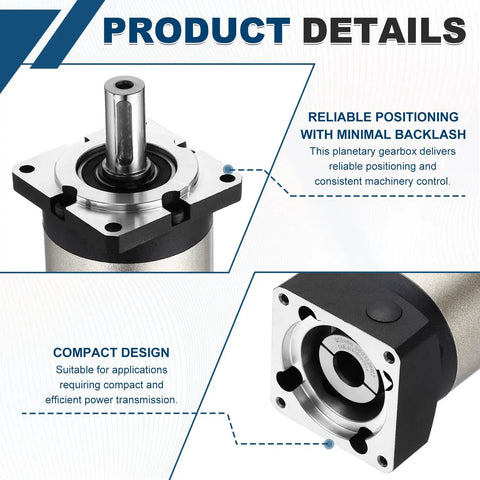

This planetary gearbox speed reducer delivers high-torque, low-backlash performance for CNC routers, engraving machines, lathes, and heavy-duty servo systems. Its aluminum housing provides durable protection in industrial environments, making it ideal for continuous operation and frequent start-stop cycles.

✅ Reduction ratio: 50:1
✅ Backlash: ≤15 arc-min
✅ Frame size: 60 x 130 mm (W x H)
✅ Body length: 95.8 mm
✅ Input bore: 14 mm (0.551 in)
✅ Output shaft: 14 mm (0.551 in)
✅ Full load efficiency: 92%
✅ Rated input speed: 3000 rpm
✅ Max input speed: 5000 rpm

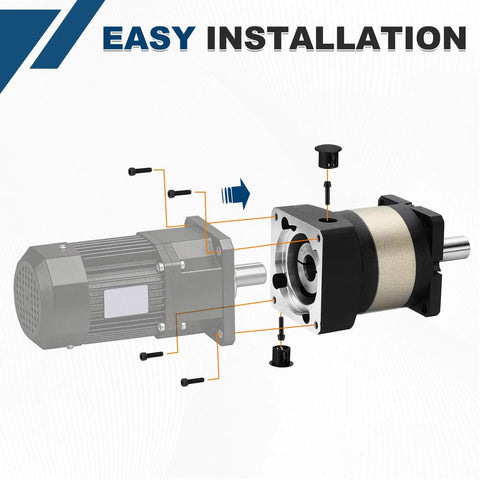

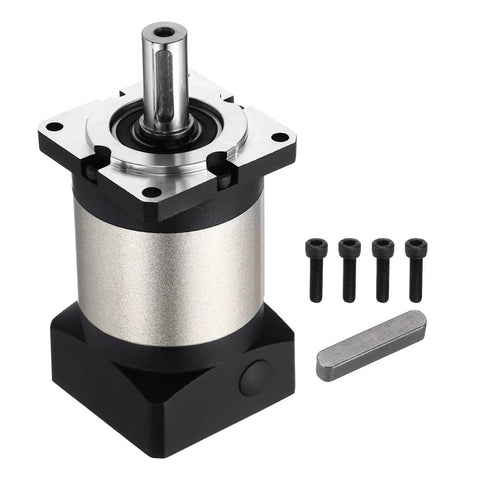

✅ Package contents: 1 Pcs x Planetary Reducer for 60mm Servo Motor with 4 x M4 screws, 1 x key block

💡 What is a planetary gearbox speed reducer used for in CNC routers and servo systems? This handy gearhead helps deliver high torque at low speeds with precise, repeatable positioning.

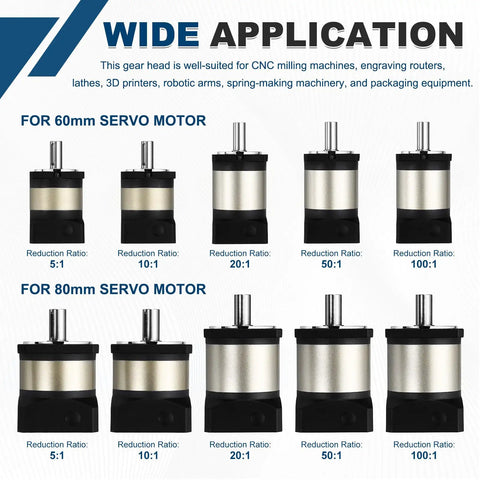

- Torque multiplication enables higher output torque without large motors - Low angular play improves repeatable positioning during direction changes - Ideal for CNC milling, engraving routers, lathes, and 3D printers✝️
