Piezoresistive Water Level Sensor For Washing Machine Control Board With 8 Pin DIP Analog Output Low Pressure 6 KPa Compatible With Whirlpool Maytag Amana 2 Pack Real Time Level Detection For Precise And Reliable Fill
✔️ 8-pin DIP, 0.5-4.5V output, 6 kPa low pressure range

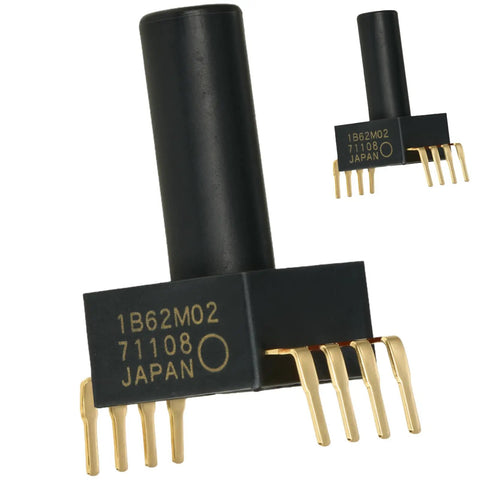

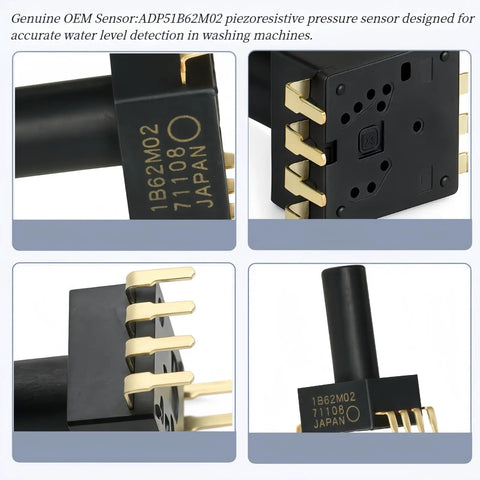

This ADP51B62M02 piezoresistive water level sensor is designed for real-time detection of water height in washing machines and serves as a direct replacement on compatible control boards. It provides a stable 0.5-4.5V analog output to accurately monitor fill levels, supporting efficient and safe operation. Compatible with vertical modular washers using Pima Alto control boards from Whirlpool, Maytag, and Amana.
✅ Model: ADP51B62M02

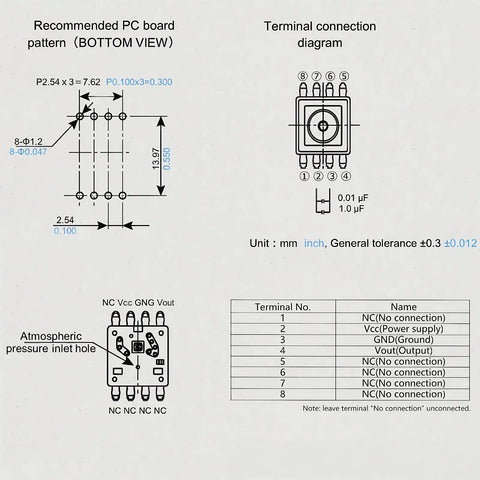

✅ Package: 8-pin DIP
✅ Output: 0.5-4.5V analog
✅ Pressure range: 6 kPa low pressure
✅ Color: Black
✅ Pack: 2-Pack
💡 What is a piezoresistive water level sensor used for in washing machines?
This sensor measures water height in real time and feeds the control board to regulate fill and prevent overflow.
- Real-time water height measurement with stable output
- Compatible with Pima Alto control boards in Whirlpool/Maytag/Amana units
- Analog output 0.5-4.5V for easy interfacing to common control boards
- 6 kPa low-pressure range designed for domestic washing machines
