Pavo Femto Brushless Whoop Frame With HD VTX Bracket And Camera Canopy For O4 Air Unit Modular 75mm Wheelbase PA12 Material Effortless Install Plug And Play For DIY Cinewhoop Drone Quad Copter
✔️ 75mm wheelbase, PA12 duct, 2mm CF plate, O4 VTX ready, 1 set

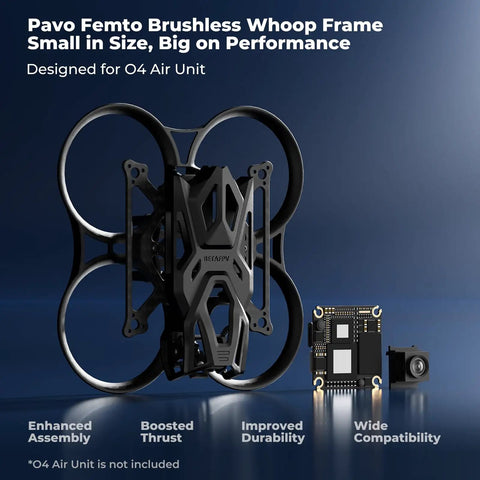

The Femto brushless whoop frame is a compact, durable kit designed for cinematic micro drones. Optimized for the DJI O4 Air Unit, it includes an HD VTX bracket and camera canopy for quick, plug‑and‑play assembly, making DIY Cinewhoop builds fast and reliable.

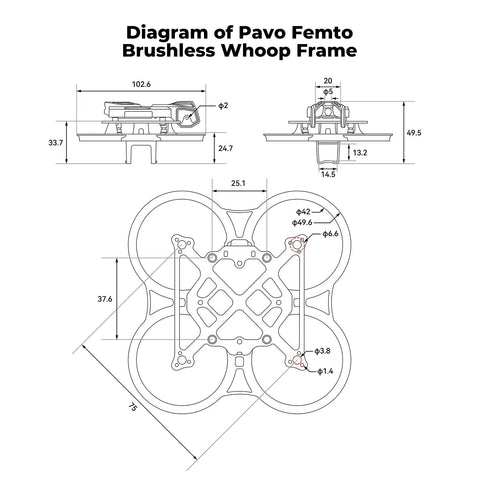

✅ Wheelbase: 75mm
✅ Carbon fiber plate thickness: 2mm
✅ Whoop duct material: PA12
✅ Whoop duct weight: 8.68g

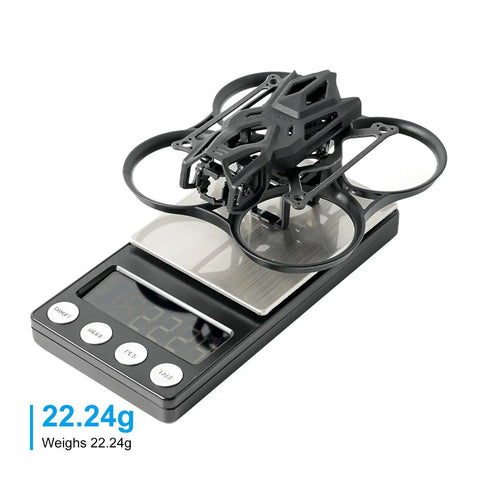

✅ Frame weight: 22.24g
✅ Flight controller mounting hole size: 25.5mm x 25.5mm
✅ Motor mounting hole size: 3 x M1.4

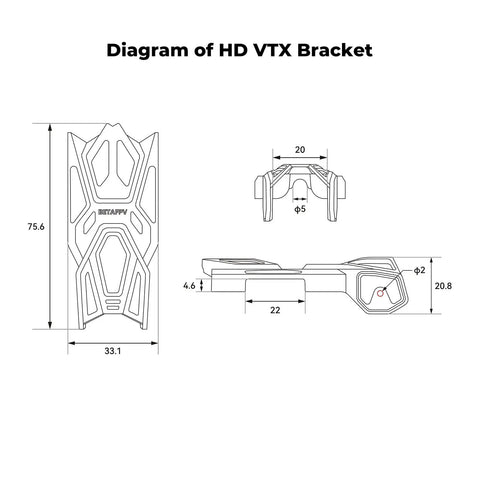

✅ O4 Air Unit Bracket material: PA
✅ O4 Air Unit Bracket weight: 7.48g
✅ Camera mounting spacing: 20mm
✅ O4 Air Unit Bracket compatibility: Pavo Femto, Pavo Pico, Pavo20

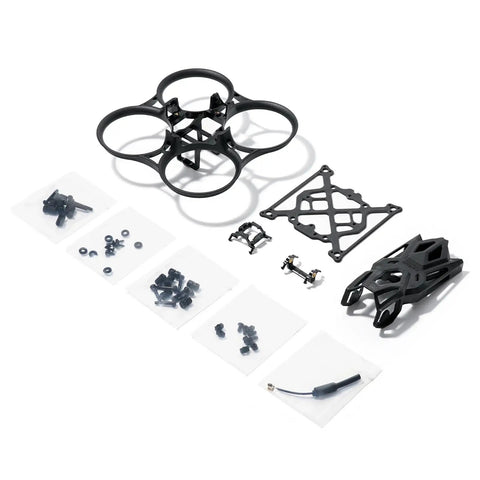

✅ Package contents: 1 Whoop Carbon Fiber Plate, 1 Whoop Duct, 1 Canopy for O4 Air Unit Bracket, 1 Bottom Plate for O4 Bracket, 1 HD VTX Bracket for O4 Camera, 1 Shock-absorbing Mount for DJI O4 Camera, 1 5.8G VTX Antenna, 6 Shock-absorbing Balls for FC, 6 Shock-absorbing Balls for O4 Bracket, 6 Shock-absorbing Pads for O4, 6 Shock-absorbing Balls for O4 Camera, 4 M2x10 Cylindrical Socket Head Cap Screws, 4 M2x14 Flat Head Socket Cap Screws
💡 What is a long-tail keyword question about cinewhoop frames with O4 HD VTX brackets handy for?
This handy answer shows the core benefits.
- Compact 75mm frame supports cinematic micro-quads
- O4 HD VTX bracket secures video and camera canopy
- Quick plug-and-play setup keeps DIY cinewhoop builds moving
